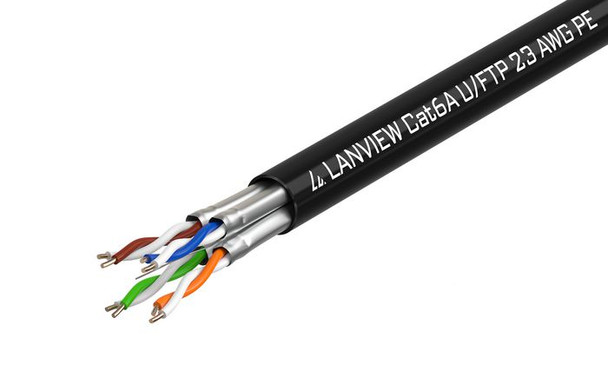

Lanview LVN122445 Cat6a U-FTP Network Cable LVN122445

Used in structured cabling systems outdoor. Typically used as intermediate cabling between buildings as well as outdoor surveillance.



This type of cable has no overall shielding but the individual twisted pairs are wrapped in a foil screen, offering some protection from EMI and crosstalk from adjacent pairs and other cables.



Lanview Cat6a U-FTP PE cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors,

Features



AWG wire size



23


Cable class



D


Cable fire class



Fca


Cable length



500 m


Cable shape



Round


Cable shielding



U/UTP (UTP)


Cable standard



Cat6a


Cable type



Cable on reel


Cabling technology



10GBase-T


Conductor material



Copper


Conductor type



Solid


Connector 1



Open end


Connector 2



Open end


Data transfer rate



10000 Mbit/s


Ethernet interface type



10 Gigabit Ethernet


Frequency



500 MHz


Harmonized System (HS) code



84733080


Jacket material



Polyethylene (PE)


Product colour



Black


RoHS compliance



Yes


Suitable for outdoor use



Yes


Package dimensions



Depth (package,cm)



35 cm


Gross Weight (Package, kg)



26.5 kg


Height (package,cm)



40 cm


Width (package,cm)



35 cm


Packaging data



Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



22.5 kg


Product Depth



35 cm


Product Height



40 cm


Product Width



35 cm


Vendor information



Brand Name


Lanview


Warranty



25 Year(s)


Weight & dimensions



Outer diameter



7.3 mm
