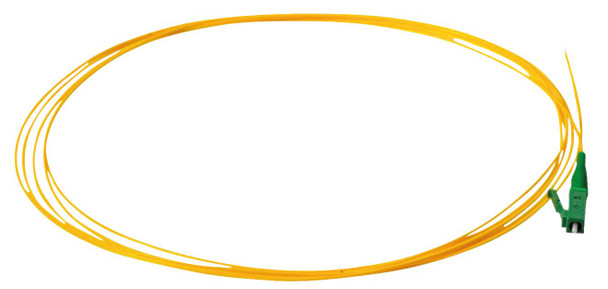

Lanview LVO231390 LC/APC Pigtail Singlemode 2m LVO231390

Used for splicing fibre optical cables. Comes with ceramic zirconia ferrule. Used in telecommunication and data communication in high speed network.

Features



Cable length



2 m


Certification



ISO 9001, UL, GR-326-Core, IEC 61755, IEC61300


Cladding diameter



125 �m


Connector 1



LC/APC


Connector 1 gender



Male


Connector 2



N


Connector 2 gender



No


Connector gender



Male


Connector polish type



PC


Core diameter



9 �m


Fiber mode structure



Single-mode


Fibre optic type



OS2


Harmonized System (HS) code



85447000


Insertion loss



0.3 dB


Jacket material



Polyvinyl chloride (PVC)


Product colour



Yellow


Return loss



50 dB


RoHS compliance



Yes


Wavelengths supported



1310, 1550


Operational conditions



Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 85 �C


Other features



Connector(s)



LC


Package dimensions



Gross Weight (Package, kg)



0.01 kg


Packaging data



Quantity



1


Quantity per pack



1 pc(s)


Product dimensions



Net Weight (Product, kg)



0.0094 kg


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Lanview


Warranty



25 Year(s)


Weight & dimensions



Cable diameter



0.9 mm
