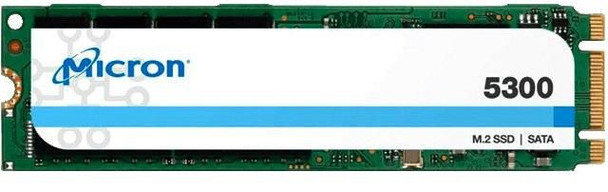

Lenovo 4XB7A17071-DEMO 4Xb7A17071 Internal Solid 4XB7A17071-DEMO

M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution however depending on the endurance of the M.2 drives, they may also be suitable for read-intensive or mixed workloads.

Lenovo ThinkSystem servers support M.2 drives in one of three ways, depending on the server selected:- One or two drives, mounted in an M.2 adapter, vertically in a dedicated slot
- Two or four drives, mounted horizontally in an M.2 adapter
- Installed directly on the system board

One example is the Dual M.2 Adapter, as shown in the following figure, with one 128GB M.2 drive partially inserted. The second M.2 drive is installed on the other side of the adapter.

Features



Component for



Server/workstation


Interface



Serial ATA III


NVMe



No


Random read (4KB)



67000 IOPS


Random write (4KB)



40000 IOPS


Read latency



500 �s


Read speed



540 MB/s


SSD capacity



240 GB


SSD form factor



M.2


TBW rating



657


Write latency



500 �s


Write speed



310 MB/s


Logistics data



Harmonized System (HS) code



84717070


Package dimensions



Gross Weight (Package, kg)



0.91 kg


Product dimensions



Net Weight (Product, kg)



0.7 kg


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
