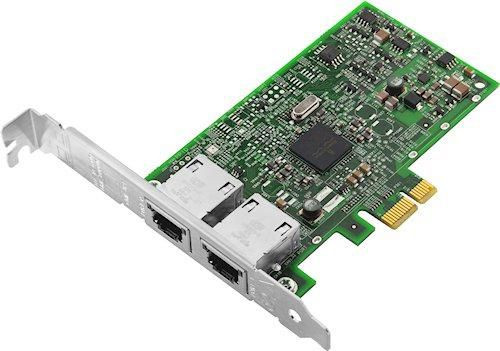

Lenovo 7ZT7A00482 DCG ThinkSystem Broadcom 7ZT7A00482

The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCI Express adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.

This product guide provides essential presales information to understand the NetXtreme GbE offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

Design



Certification



EN55022 EN55024 EN60950 / CE EN 61000-3-2 EN 61000-3-3 ICES-003, Issue-004 IEC 950 CB Scheme FCC 47 CFR Part 15 Class A UL 1950 CSA C22.2 950-95 VCCI AS/NZSCISPR 22 / C-tick RRL for KC BSMI UL 94-/V


Internal



Yes


LED indicators



Y, Yes


PCI Card form factor



Full-height (low-profile)


Product colour



Green


RoHS compliance



Yes


Network



Cabling technology



10/100/1000BaseT(X)


Ethernet interface type



Gigabit Ethernet


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Flow control support



Yes


iSCSI support



Yes


Jumbo frames



9600


Jumbo frames support



Yes


LAN controller



Broadcom BCM5720


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.1Q, IEEE 802.3az


Other features



Flow control support



Yes


Harmonized System (HS) code



85176990


Jumbo frames



9600


Package dimensions



Depth (package,cm)



25.1 cm


Gross Weight (Package, kg)



0.22 kg


Height (package,cm)



5.6 cm


Width (package,cm)



15.1 cm


Packaging data



Quantity



1


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



2


Host interface



PCI Express


Interface



Ethernet


PCI Card form factor



Full-height (low-profile)


PCI version



2.0


Product dimensions



Net Weight (Product, kg)



0.214 kg


Product Depth



1.9 cm


Product Height



6.9 cm


Product Width



10.9 cm


Sustainability



Sustainability certificates



RoHS


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
