Lenovo 7ZT7A00497-RFB BROADCOM NX-E ML2 10GB 2PORT 7ZT7A00497-RFB

The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring.

This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.

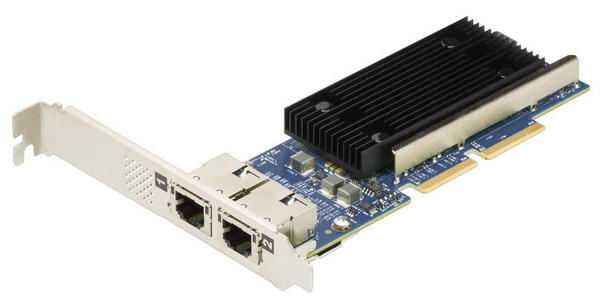

The following figure shows the ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter.

Design



Internal



Yes


Product colour



Black, Blue


Network



Cabling technology



10GBase-T


Ethernet LAN data rates



10, 100, 1000, 10000


iSCSI support



Yes


Jumbo frames support



Yes


Maximum data transfer rate



10000 Mbit/s


Maximum operating distance



100 m


Networking standards



IEEE 802.3ab, IEEE 802.3an


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 65 °C


Package dimensions



Gross Weight (Package, kg)



1.14 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



2


Interface



Ethernet


Product dimensions



Net Weight (Product, kg)



0.99 kg


Product Depth



16.8 cm


Product Height



6.9 cm


Product Width



1.7 cm


Vendor information



Brand Name


Lenovo


Warranty



1 Year(s)
