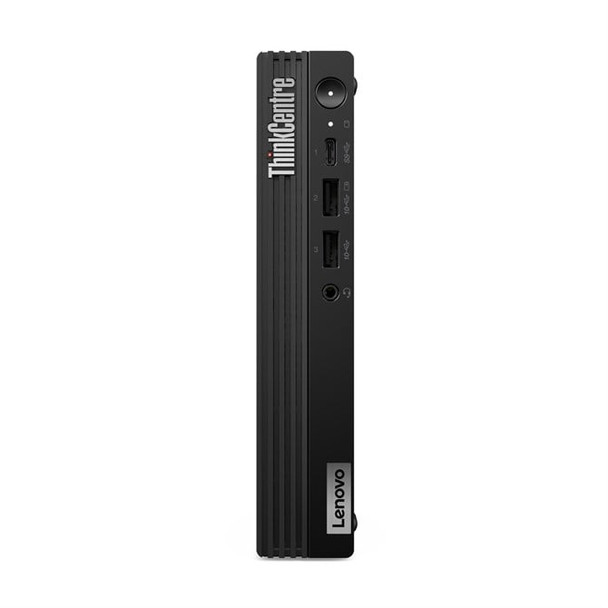

Lenovo ThinkCentre M70q Gen 5 Intel? Core? I7 I7-14700T 16 GB DDR5-SDRAM 512 GB 12TD0094UK

Big Performance in a Compact PC
- High-performing business desktop that fits anywhere, even horizontally positioned
- Optimized workloads with up to Intel- Core- performance
- Fast data processing with dual-channel memory
- Enhanced privacy & enterprise-grade security

Specs




Processor


Processor manufacturer

The manufacturer that produced the processor.

Intel


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Intel- Core- i7


Processor generation

Intel- Core- i7 (14th gen)


Processor model

The model number for the processor in a computer.

i7-14700T


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).



Processor threads

28


Processor boost frequency

The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5.2 GHz


Performance cores

8


Efficient cores



Performance-core Max Turbo Frequency

5 GHz


Efficient-core Max Turbo Frequency

3.7 GHz


Performance-core base frequency

1.3 GHz


Efficient-core base frequency

0.9 GHz


Processor cache

33 MB


Processor cache type

Smart Cache


Processor base power

35 W


Maximum turbo power
6 W


Memory


Internal memory

A computer's memory which is directly accessible to the CPU.
GB


Maximum internal memory

The maximum internal memory which is available in the product.

64 GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM


Memory layout (slots x size)

The slots and size of the memory for the CPU.

1 x 16 GB


Memory slots

Number and type of memory expansion slots, including connector and memory module descriptions.

2x SO-DIMM


Memory clock speed

The frequency at which the memory (e.g. RAM) runs.

5600 MHz


Storage


Total storage capacity

The total amount of data that can be stored on the device.

512 GB


Storage media

Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD


Optical drive type

An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.




Total SSDs capacity

512 GB


Number of SSDs installed

1


SSD capacity

The Solid State Drive's data storage capacity.

512 GB


SSD interface

The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express 4.0


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




SSD form factor

The size of the solid-state drive, given in inches

M.2


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




Graphics


Discrete graphics card




On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




Discrete graphics card model

A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available


On-board GPU manufacturer

Intel


On-board graphics card family

Intel- UHD Graphics


On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel UHD Graphics 770


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
0, 1000 Mbit/s


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6E (802.11ax)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 6E (802.11ax)


WLAN controller manufacturer

Intel


WLAN controller model

Intel Wi-Fi 6E AX211


Antenna type

Type of antenna, also known an aerial, e.g. external, internal.

2x2


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Bluetooth version

The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.3



Ports & interfaces


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Combo headphone/mic port




Design


Chassis type

The type of rigid framework onto which is the hosuing for device components.

Mini PC


Colour name

Black


Volume

The amount of a substance contained.

1 L


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Product colour

The colour e.g. red, blue, green, black, white.

Black


Performance


Motherboard chipset

The chipset connects the microprocessor to the rest of the motherboard.

Intel Q670


Audio chip

Realtek ALC233VB


Audio system

System used to play music or speech.

High Definition Audio


Number of speakers

The quantity of speakers included in/with the product.

1


Trusted Platform Module (TPM)




Product type

The sub-category of the product.

Mini PC


Software


Operating system architecture

The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.

64-bit


Operating system language

English


Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro


Power


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
5 W


Power supply input voltage
0 - 240 V


Power supply input frequency

The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.

50/60 Hz


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

5 - 35 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 60 ?C


Operating relative humidity (H-H)
- 80%


Storage relative humidity (H-H)
- 90%


Operating altitude

0 - 3048 m


Non-operating altitude

0 - 12192 m


Certificates


Certification

ENERGY STAR,TCO,EPEAT Silver,RoHS


Weight & dimensions


Width

The measurement or extent of something from side to side.
9 mm


Depth

The distance from the front to the back of something.
2.9 mm


Height

The measurement of the product from head to foot or from base to top.

36.5 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.25 kg


Package width

The distance from one side of the packaging to the other.

490 mm


Package depth

The distance from the front to the back of the packaging.
1 mm


Package height

The distance from the top to the bottom of the packaging.

268 mm


Package weight

Weight of the packaged product.

2.85 kg


Packaging content


Mouse included

A mouse is included with this product.




Mouse connectivity

Wired


Keyboard included

A keyboard is part of the bundle/set.




Keyboard connectivity

Wired


Display


Display included

This product includes a display.
