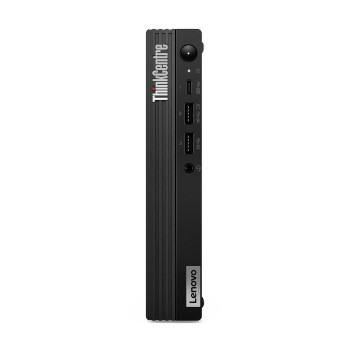

Lenovo ThinkCentre M70q Gen 6 13A4004FUK

ENSURED PRODUCTIVITY FOR PROFESSIONALS
AI-Assisted Performance

Supercharge your workflow with the ThinkCentre M70q Gen 6 Tiny PC. Powered by Intel- Core- Ultra processors, it features Intel vPro- for security and IT manageability. Lenovo AI Now drives AI acceleration, while the AI Turbo Engine allocates workloads between CPU, GPU, and NPU for peak performance. Plus, WiFi 7 ensures blazing-fast connectivity.

BIG POWER & FLEXIBILITY
Multitask Like a Pro

Enjoy unmatched productivity with faster USB speeds and multiple ports. Connect the ThinkCentre M70q Tiny PC to up to four displays to power through tasks with vast memory and expandable storage. With an optional USB-C- (Thunderbolt- 4) port and Neural Processing Unit (NPU), enhance hybrid and digital workplace expansion for a broadened ecosystem.

ALL-AROUND SAFETY IN PLACE
Robust Security & Manageability

This secured-core PC (L3) features ThinkShield security, encompassing hardware and software solutions. Get additional safeguards with a self-healing BIOS, dTPM chip, Kensington Security Slot-, and Smart USB Protection. Choose Intel vPro- security for advanced threat protection while securing your data and business with ThinkCentre Customization.

DURABILITY YOU CAN RELY ON
Intentional Engineering to Boost Efficiency

This PC uses the US Department of Defense MIL-STD-810H for a balance of reliability and durability. With T-V anti-dust, low surface, and shock-resistance certifications, it stands strong in tough environments, while ensuring safety through IEC Electrical Safety and Electromagnetic certifications, offering first-class manageability for any workspace.

CREDIBILITY & COLLABORATION
Sustainability

Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.

Specifications may vary depending upon region / model.

Specs




Processor


Processor manufacturer

The manufacturer that produced the processor.

Intel


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Intel Core Ultra 7


Processor generation

Intel Core Ultra (Series 2)


Processor model

The model number for the processor in a computer.

265T


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).



Processor threads



Processor boost frequency

The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5.3 GHz


Performance cores

8


Efficient cores



Performance-core Max Turbo Frequency

5.2 GHz


Efficient-core Max Turbo Frequency

4.6 GHz


Performance-core base frequency

1.5 GHz


Efficient-core base frequency

1.2 GHz


Processor cache

30 MB


Processor cache type

Smart Cache


Number of processors installed

Number of processors in the product.

1


Processor base power

35 W


Maximum turbo power
2 W


Neural processor unit (NPU)


Neural processor unit (NPU)

Intel AI Boost


Sparsity support




Windows Studio effects support




AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN


Total processor performance up to

33 TOPs


NPU performance up to
TOPs


GPU performance up to

8 TOPs


Memory


Internal memory

A computer's memory which is directly accessible to the CPU.
GB


Maximum internal memory

The maximum internal memory which is available in the product.

64 GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM


Memory layout (slots x size)

The slots and size of the memory for the CPU.

1 x 16 GB


Memory slots

Number and type of memory expansion slots, including connector and memory module descriptions.

2x SO-DIMM


Memory clock speed

The frequency at which the memory (e.g. RAM) runs.

5600 MHz


Memory channels

Dual-channel


Storage


Total storage capacity

The total amount of data that can be stored on the device.

512 GB


Storage media

Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD


Optical drive type

An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.




Number of storage drives installed

Amount of storage drives built into the device.

1


Total SSDs capacity

512 GB


Number of SSDs installed

1


SSD capacity

The Solid State Drive's data storage capacity.

512 GB


SSD interface

The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express 4.0


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




SSD form factor

The size of the solid-state drive, given in inches

M.2


M.2 SSD size

2280 (22 x 80 mm)


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




Graphics


Discrete graphics card




On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




Discrete graphics card model

A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available


On-board GPU manufacturer

Intel


On-board graphics card family

Intel- Graphics


On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel- Graphics


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
0, 1000 Mbit/s


Cabling technology

Type of cable technology performance.
/100/1000Base-T(X)


LAN controller

Intel- I219-LM


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6E (802.11ax)



Network


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 6E (802.11ax)


WLAN controller manufacturer

Intel


WLAN controller model

Intel Wi-Fi 6E AX211


Antenna type

Type of antenna, also known an aerial, e.g. external, internal.

2x2


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Bluetooth version

The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.3


Wake-on-LAN ready




Ports & interfaces


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

2


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Combo headphone/mic port




Design


Chassis type

The type of rigid framework onto which is the hosuing for device components.

Mini PC


Colour name

Raven black


Volume

The amount of a substance contained.

1 L


Placement supported

Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Horizontal/Vertical


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Product colour

The colour e.g. red, blue, green, black, white.

Black


Performance


Motherboard chipset

The chipset connects the microprocessor to the rest of the motherboard.

Intel Q870


Built-in speaker(s)

The device contains speaker(s) to produce sound.




Number of speakers

The quantity of speakers included in/with the product.

1


Password protection

The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.




Password protection type

BIOS, HDD, Power on, Supervisor


Trusted Platform Module (TPM)




Product type

The sub-category of the product.

Mini PC


Trusted Platform Module (TPM) version

2.0


Software


Operating system language

English


Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro


Power


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
5 W


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

5 - 35 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 60 ?C


Operating relative humidity (H-H)
- 80%


Storage relative humidity (H-H)
- 90%


Operating altitude

0 - 3048 m


Non-operating altitude

0 - 12192 m


Certificates


Compliance certificates

RoHS


Sustainability


Sustainability certificates

ENERGY STAR, TCO


Weight & dimensions


Width

The measurement or extent of something from side to side.
9 mm


Depth

The distance from the front to the back of something.
2.9 mm


Height

The measurement of the product from head to foot or from base to top.

36.5 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.18 kg


Package width

The distance from one side of the packaging to the other.

250 mm


Package depth

The distance from the front to the back of the packaging.

490 mm


Package height

The distance from the top to the bottom of the packaging.
8 mm


Package weight

Weight of the packaged product.

3.2 kg


Packaging content


Mouse included

A mouse is included with this product.




Mouse connectivity

Wired


Keyboard included

A keyboard is part of the bundle/set.




Keyboard connectivity

Wired


Display


Display included

This product includes a display.
