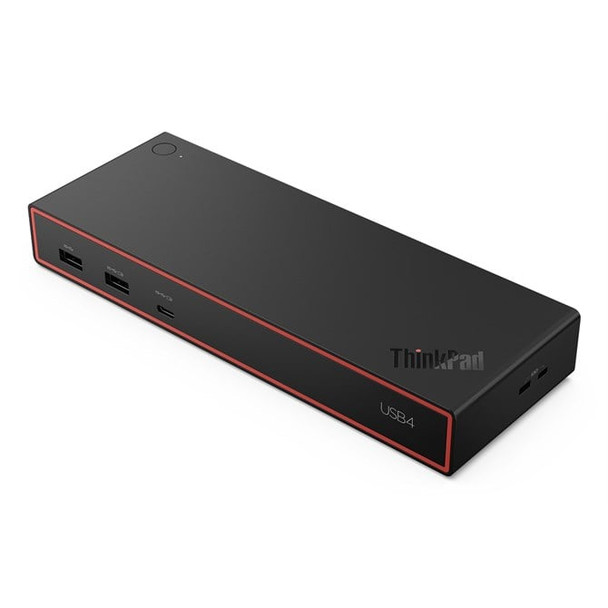

Lenovo ThinkPad USB4 Dock 5000 Wired Thunderbolt 4 Black 40BF0100UK

Designed to enhance everyday productivity, the Lenovo- ThinkPad- USB4 Dock 5000 is the Successor of our famous Universal USB-C Dock equipped with cutting edge USB4 Technology, The dock can connect to your laptop with 40Gbps bandwidth USB4 upstream connectivity, that allows you to extend your monitor setup with more pixels and higher refresh rates. It can output 65W charge power to your laptop with 100W power adapter, or you can choose a 135W power adapter to boost the charge power up to 100W to you laptop.

Specs




Ports & interfaces


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired


Host interface

Interface that enables a host controller to communicate with a driver.

Thunderbolt 4


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

2


USB Power Delivery (USB PD)




USB Power Delivery revision

3.1


USB Power Delivery up to

65 W


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

2


DisplayPort version

1.4


Microphone in

The socket where a microphone is connected to the device.




USB Type-C DisplayPort Alternate Mode




Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
00 Mbit/s


Performance


Colour name

Eclipse Black


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




Maximum digital resolution

3840 x 2160 pixels


Number of displays supported

The number of displays that can be used with this product.

4


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington



Performance


Product colour

The colour e.g. red, blue, green, black, white.

Black


Certification

FCC/ICES CE KCC RCM BSMI VCCI CB cULus EAC TUV- Mark LoA Ukraine DoC NOM


Power


Power source type

What the power source is.

DC


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
0 W


Software


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 11


Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 ?C


Operating relative humidity (H-H)
- 95%


Weight & dimensions


Width

The measurement or extent of something from side to side.

218 mm


Depth

The distance from the front to the back of something.

80 mm


Height

The measurement of the product from head to foot or from base to top.

31.5 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

470 g


Packaging data


Package width

The distance from one side of the packaging to the other.

240 mm


Package depth

The distance from the front to the back of the packaging.
5 mm


Package height

The distance from the top to the bottom of the packaging.

77 mm


Package weight

Weight of the packaged product.

1.03 kg


Packaging content


Warranty card




Cables included

AC, USB


AC adapter included




Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
