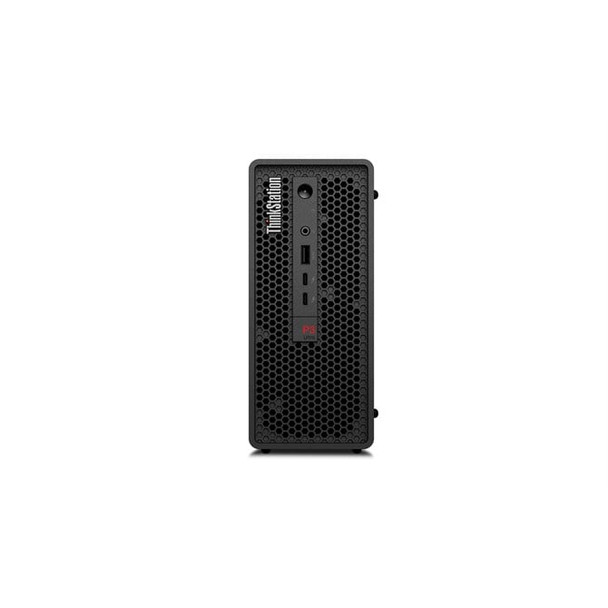

Lenovo ThinkStation P3 Ultra SFF Intel? Core? i7 i7-14700 16 GB DDR5-SDRAM 512 G 30HA0048UK

Redefining the power of small
- Packs amazing power into an industry-first 3.9L chassis small form factor
- Blazingly-fast Intel vPro- with Intel- Core- processors, vast memory
- Choice of optional professional discrete graphics
- ISV-certified, handles complex workflows with ease
- Supports remote monitoring & system management
- Designed for compact spaces, suitable for any industry

Specs




Processor


Processor manufacturer

The manufacturer that produced the processor.

Intel


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Intel- Core- i7


Processor generation

Intel- Core- i7 (14th gen)


Processor model

The model number for the processor in a computer.

i7-14700


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).



Processor threads

28


Processor boost frequency

The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5.4 GHz


Performance cores

8


Efficient cores



Performance-core Max Turbo Frequency

5.3 GHz


Efficient-core Max Turbo Frequency

4.2 GHz


Performance-core base frequency

2.1 GHz


Efficient-core base frequency

1.5 GHz


Processor cache

33 MB


Processor cache type

Smart Cache


Number of processors installed

Number of processors in the product.

1


Processor base power

65 W


Maximum turbo power

219 W


Memory


Internal memory

A computer's memory which is directly accessible to the CPU.
GB


Maximum internal memory

The maximum internal memory which is available in the product.
8 GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM


Memory layout (slots x size)

The slots and size of the memory for the CPU.

1 x 16 GB


Memory slots

Number and type of memory expansion slots, including connector and memory module descriptions.

4x SO-DIMM


Memory clock speed

The frequency at which the memory (e.g. RAM) runs.

4800 MHz


Storage


Total storage capacity

The total amount of data that can be stored on the device.

512 GB


Storage media

Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD


Optical drive type

An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.




Total SSDs capacity

512 GB


Number of SSDs installed

1


SSD capacity

The Solid State Drive's data storage capacity.

512 GB


SSD interface

The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express 4.0


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




SSD form factor

The size of the solid-state drive, given in inches

M.2


Graphics


Discrete graphics card




On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




Discrete graphics card model

A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available


On-board graphics card family

Intel- UHD Graphics


On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel UHD Graphics 770



Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Ports & interfaces


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5


Intel- Thunderbolt 4




Thunderbolt 4 ports quantity

2


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

3


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Combo headphone/mic port




Design


Chassis type

The type of rigid framework onto which is the hosuing for device components.

Mini Tower


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Product colour

The colour e.g. red, blue, green, black, white.

Black


Performance


Motherboard chipset

The chipset connects the microprocessor to the rest of the motherboard.

Intel W680


Audio chip

Realtek ALC897-Q


Audio system

System used to play music or speech.

High Definition Audio


Trusted Platform Module (TPM)




Product type

The sub-category of the product.

Workstation


Software


Operating system architecture

The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.

64-bit


Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro


Power


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

230 W


Power supply input voltage
0 - 240 V


Power supply input frequency

The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.

50 - 60 Hz


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

5 - 35 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 60 ?C


Operating relative humidity (H-H)
- 80%


Storage relative humidity (H-H)
- 90%


Operating altitude

0 - 3048 m


Non-operating altitude

0 - 12192 m


Weight & dimensions


Width

The measurement or extent of something from side to side.

87 mm


Depth

The distance from the front to the back of something.

223 mm


Height

The measurement of the product from head to foot or from base to top.
2 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

3.6 kg


Packaging content


Mouse included

A mouse is included with this product.




Keyboard included

A keyboard is part of the bundle/set.




Display


Display included

This product includes a display.
