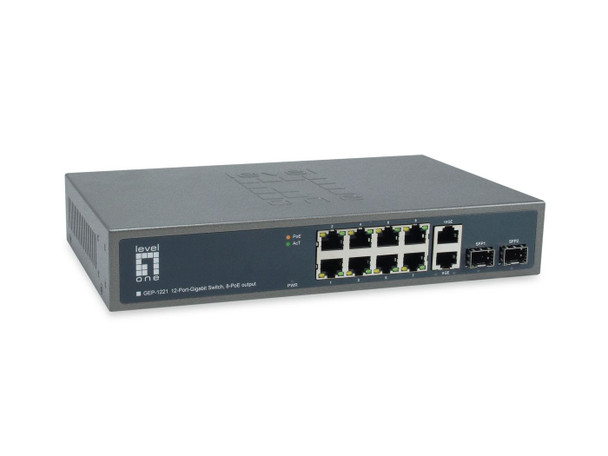

LevelOne GEP-1221 Network Switch Unmanaged GEP-1221
(No reviews yet)
Write a Review
- UPC:
- 4015867227978
- MPN:
- GEP-1221
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The GEP-1221 switch provides 10 port 10/100/1000M ports with 2 port SFP. It is designed for easy installation and high performance in an environment where traffic is on the network and the number of users increases continuously. It consists of 8 PSE/PoE ports. That can solve the limitation of the power outlet location and offer the system designer a flexible solution to locate the network device everywhere.The device size is specifically designed for medium to large workgroups. The Switch can be installed where space is limited; moreover it provides smooth network migration and easy upgrade to network capacity. The PoE switch can be rack-mount on 19� cabinet.
Data transmission
MAC address table
4000 entries
Packet buffer memory
14.88 MB
Switching capacity
22 Gbit/s
Design
LED indicators
Y, Yes
Product colour
Black
Rack mounting
Yes
Stackable
No
Logistics data
Harmonized System (HS) code
85176990
Management features
Switch type
Unmanaged
Network
10G support
No
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Ethernet LAN data rates
1000
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operational conditions
Operating relative humidity (H-H)
5 - 90 %
Operating temperature (T-T)
5 - 40 �C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 �C
Package dimensions
Gross Weight (Package, kg)
1.82 kg
Packaging data
Quick start guide
Yes
Performance
Fanless
Yes
Internal memory
2 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
10
SFP module slots quantity
2
Power
AC input voltage
100 - 240 V
Power consumption (typical)
10 Watt
Power source
AC
Power supply included
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 Watt
Total Power over Ethernet (PoE) budget
150 Watt
Product dimensions
Net Weight (Product, kg)
1.4 kg
Product Depth
15 cm
Product Height
4 cm
Product Width
25 cm
Vendor information
Brand Name
LevelOne
Warranty
1 Year(s)
