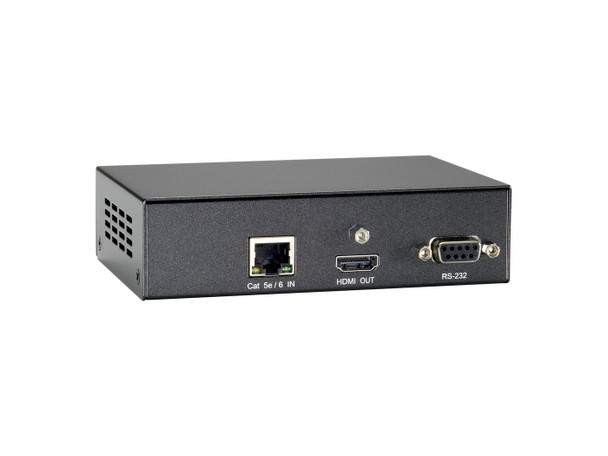

LevelOne HVE-9211PR HDMI O.CAT.5RECEIVER HVE-9211PR

The HVE-92 series is a HDMI extension solution supports HDBaseT technology which transmits HDMI signal and multi-channel audio at resolution Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD up to 100m via Cat5e or Cat6 cable.

The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.

All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.

Key Features
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through

Features



3D



Yes


Bandwidth



10.2 Gbit/s


Bandwidth



0.038 MHz


Baud rate



115 Kbit/s


Cable types supported



Cat5e, Cat6


Colour depth



48 bit


HDCP



Yes


HDCP & EDID bypass



Yes


LED indicators



Activity, Power


Material



Metal


Maximum resolution



3840 x 2160 Pixels


Maximum transfer distance



100 m


Networking standards



IEEE 802.3af


Plug and Play



Yes


Product colour



Black


Supported video modes



720p, 1080p


Type



AV receiver


Package dimensions



Depth (package,cm)



15 cm


Gross Weight (Package, kg)



0.814 kg


Height (package,cm)



12 cm


Width (package,cm)



19 cm


Packaging content



Manual



Yes


Ports & interfaces



3.5 mm (1/8-inch) in



Yes


3.5 mm (1/8-inch) out



Yes


Ethernet LAN



Yes


RJ-45 input ports



1


RS-232 input ports



1


Power



Power consumption (receiver) (max)



1110 mA


Power over Ethernet (PoE)



Yes


Product dimensions



Product Depth



8.5 cm


Product Height



4 cm


Product Width



12.5 cm


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



125 x 85 x 40 mm
