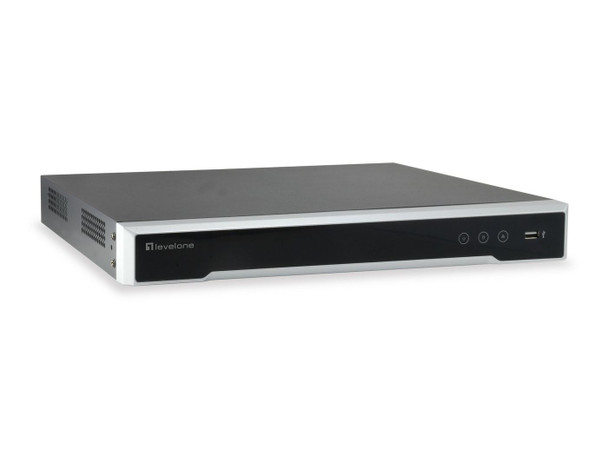

LevelOne NVR-0508 8CH NVR 8-PORT POE IEEE 802.3A NVR-0508

The LevelOne NVR-0508 NVR enables live view, recording and playback for up to 8 IP network cameras at the same time, featuring up to 8-megapixel resolution and H.265/H.264+/H.264/MPEG4 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app.

The NVR also features built-in HDMI, VGA and USB ports for peripheral devices such as a monitor, mouse or keyboard, allowing users to operate directly from the NVR without the cost of adding a PC to the deployment. 2 HDD bays complete the package, with a disk capacity of up to 6TB making the LevelOne NVR-0508 a powerful, smart and cost-effective solution for managing your security network.

An integrated 8-port 802.3at PoE switch enables the NVR to run both power and data on the one cable to power up connected PoE cameras.

Central Management System (CMS) software is included for free, with no license fees. The CMS is capable of managing up to 256 NVRs, making it suitable for large scale surveillance applications.

Features



Certification



CE, FCC, ISO9001, ISO14001, uL


Compatible products



Onvif camera


LED indicators



Alarm, HDD, Power


On/off switch



Yes


Product colour



Black


Rack mounting



Yes


Logistics data



Master (outer) case gross weight



14.1 kg


Master (outer) case height



41.2 cm


Master (outer) case length



45 cm


Master (outer) case width



54.8 cm


Products per master (outer) case



4 pc(s)


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



-10 - 55 °C


Package dimensions



Depth (package,cm)



45 cm


Gross Weight (Package, kg)



3.23 kg


Height (package,cm)



38.7 cm


Width (package,cm)



43.5 cm


Packaging content



AC adapter included



Yes


Cables included



AC


CD manual



Yes


Performance



Maximum resolution



3840 x 2160 Pixels


Number of fans



1 fan(s)


Number of users



64 user(s)


Operating system installed



Embedded LINUX


Throughput data rate



160 Mbit/s


Video formats supported



H.264, H.264+, H.265, MPEG4


Video input channels



8 channels


Video recording modes



720p, 1080p


Ports & interfaces



Audio RCA inputs



1


Audio RCA outputs



1


Ethernet LAN (RJ-45) ports



9


Ethernet LAN data rates



10, 100, 1000


HDMI output



Yes


Networking standards



IEEE 802.3at


Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



8


Supported network protocols



TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


VGA (D-Sub) output ports



1


Power



AC input voltage



100 - 230 V


Power consumption (typical)



180 Watt


Product dimensions



Net Weight (Product, kg)



3 kg


Product Depth



5.2 cm


Product Height



38.5 cm


Product Width



31.5 cm


Storage



HDD interface



Serial ATA


Maximum storage capacity



12 TB


Number of HDDs supported



2


System requirements



Browser supported



Internet Explorer 9+


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)


Wireless LAN features



Wi-Fi



No
