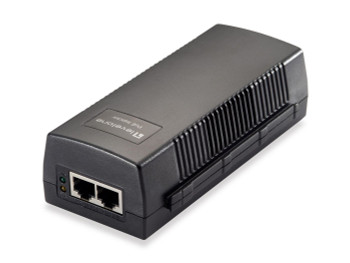

LevelOne POI-2012 Poe Adapter Fast Ethernet 52 V POI-2012

The LevelOne POI-2012 is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 15.4W and the data that comes from a non-PoE switch are merged together and then transmitted to the 802.3af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches. Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables, therefore these devices may be installed in hard-to-reach areas like ceilings where there are no any outlets or electrical wiring nearby.

Features



Certification



FCC Part 15, CE


LED indicators



PoE, Power


Maximum operating distance



100 m


Pin assignment & polarity



4/5 (+), 7/8 (-)


Plug and Play



Yes


Product colour



Black


Surge protection



Yes


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85044095


Network



Ethernet interface type



Fast Ethernet


Ethernet LAN data rates



10, 100


Networking standards



IEEE 802.3, IEEE 802.3af, IEEE 802.3u


Power over Ethernet (PoE)



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



0 - 70 �C


Package dimensions



Depth (package,cm)



12.5 cm


Gross Weight (Package, kg)



0.65 kg


Height (package,cm)



5.5 cm


Width (package,cm)



21 cm


Packaging content



Number of products included



1 pc(s)


Quick installation guide



Yes


Ports & interfaces



Ethernet LAN (RJ-45) ports



2


Power



AC adapter frequency



50/60 Hz


AC adapter input voltage



100 - 240 V


Input current



0.8 A


Output current



0.3 A


Power consumption (max)



15.4 Watt


Power over Ethernet (PoE) power per port



15.4 Watt


Power over Ethernet (PoE) voltage



52 V


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



5.1 cm


Product Height



3.8 cm


Product Width



14.3 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


LevelOne


Warranty



1 Year(s)
