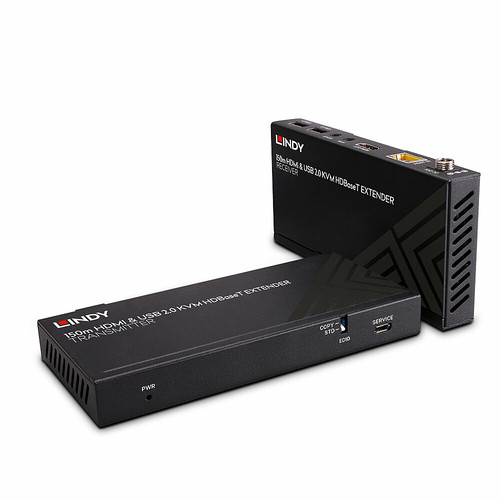

Lindy 150M Cat.6 Hdmi 4K60 Usb 2.0 & Ir Hdbaset Kvm Extender. Type: Transmitter 39384

Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter local video port type: HDMI. Receiver local video port type: HDMI. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Power consumption (transmitter) (max): 13.2 W. Transmitter width: 14 cm, Transmitter depth: 6.5 cm, Transmitter height: 1.8 cm The Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable. Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls. PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation. Setting up HDBT mode, this extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer while in Long Reach mode only USB HID devices are supported. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue. HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable. HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Video

Maximum Video Resolution3840 x 2160
Graphic Mode4K UHD

Miscellaneous

Package ContentsHDBaseT HDMI KVM Extender, Transmitter
HDBaseT HDMI KVM Extender, Receiver
IR Emitter Cable, 1.5m
IR Receiver Cable, 1.5m
4 x Mounting Ears & 8 x Screws
USB Type A to Type B Cable, 1.5m
Multi-country Power Supply (UK, EU, US & AUS)
Lindy Manual




Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Technical Information

Connectivity TechnologyWired
Maximum Operating Distance150 m
Device TypeKVM Extender

General Information

Product TypeKVM Console/Extender
Manufacturer Part Number39384
lindy
ManufacturerLindy Electronics
Product Name150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender
Brand NameLINDY


Interfaces/Ports

USBYes
HDMIYes
Number of HDMI Ports2
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports3

Physical Characteristics

Transmitter Height18 mm
Transmitter Width140 mm
Transmitter Depth65 mm
Receiver Height18 mm
Receiver Width140 mm
Receiver Depth65 mm
Product ColorBlack
Color FamilyBlack
