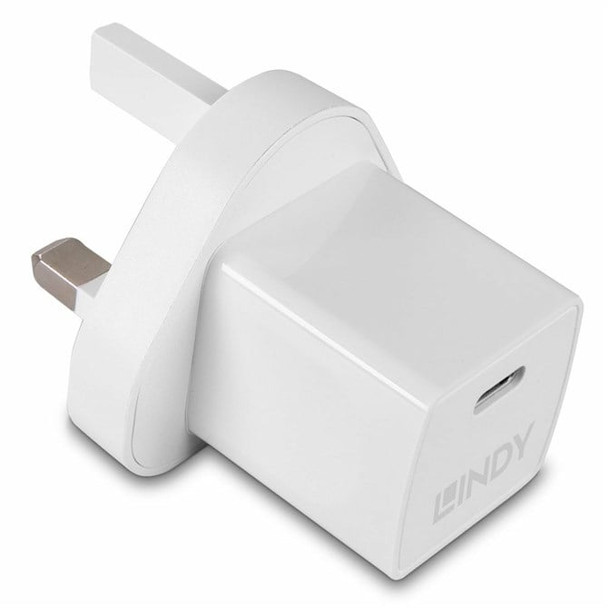

Lindy 20W USB Type C GaN Charger 73411
- UPC:
- 0000000000000
- MPN:
- 73411
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
The Lindy 20W USB Type C PD Charger is a compact, efficient solution for charging many devices. It provides fast charging for USB Type C PD and PPS-enabled devices. Thanks to the small design the charger can easily be carried and is always available when power is needed.
Featuring a single Type C female USB port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 20W, connected devices can be provided with faster charging than what is possible from a standard Type C charger supplied with many devices.
For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection.
Specs
Performance
Charger compatibility
What devices can be used with charger.
Universal
Power source type
What the power source is.
AC
USB Type-C ports quantity
1
Fast charging
Fast charging technology
GaN, Power Delivery 3.0
Charger type
Describes where charger can be used, e.g. auto, indoor.
Indoor
Number of simultaneously connected devices (max)
1
USB Power Delivery (USB PD)
USB Power Delivery revision
3.0
Power protection features
Features that protect the device against power problems e.g. overload.
Over current, Over voltage, Overheating, Short circuit
Design
Product colour
The colour e.g. red, blue, green, black, white.
White
Housing material
What the casing of the product is made of.
Polyvinyl chloride (PVC)
Connector material
Copper
Gallium nitride (GaN) transistors
Power
Input voltage
The voltage (V) which is required to power the product.
0 - 240 V
Input frequency
The frequency (Hz) which is required to power the product.
50 - 60 Hz
Input current
0.5 A
Maximum power
The maximum power that can be put into or produced by the device.
W
Maximum output voltage
V
Minimum output voltage
5 V
Output voltage accuracy (?)
5%
Output current (5V)
3 A
Output current (9V)
2.22 A
Output current (12V)
1.67 A
Power
Power consumption (no load)
0.075 W
Average active efficiency
5V 83.37%, 9V 87.32%,12V 86.40%
Efficiency at low load (10%)
Compatible power plug types
UK
Weight & dimensions
Width
The measurement or extent of something from side to side.
28 mm
Depth
The distance from the front to the back of something.
31 mm
Height
The measurement of the product from head to foot or from base to top.
29.6 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
40 g
Packaging data
Package width
The distance from one side of the packaging to the other.
80 mm
Package depth
The distance from the front to the back of the packaging.
0 mm
Package height
The distance from the top to the bottom of the packaging.
45 mm
Package weight
Weight of the packaged product.
60 g
Package type
The type of product package e.g. box.
Box
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 25 ?C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 80 ?C
Operating relative humidity (H-H)
0 - 90%
Packaging content
Quantity per pack
1 pc(s)
Manual
Certificates
Compliance certificates
CE, REACH, RoHS, UKCA
Sustainability
Sustainability compliance
Sustainability certificates
ErP
View AllClose
Featuring a single Type C female USB port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 20W, connected devices can be provided with faster charging than what is possible from a standard Type C charger supplied with many devices.
For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection.
Specs
Performance
Charger compatibility
What devices can be used with charger.
Universal
Power source type
What the power source is.
AC
USB Type-C ports quantity
1
Fast charging
Fast charging technology
GaN, Power Delivery 3.0
Charger type
Describes where charger can be used, e.g. auto, indoor.
Indoor
Number of simultaneously connected devices (max)
1
USB Power Delivery (USB PD)
USB Power Delivery revision
3.0
Power protection features
Features that protect the device against power problems e.g. overload.
Over current, Over voltage, Overheating, Short circuit
Design
Product colour
The colour e.g. red, blue, green, black, white.
White
Housing material
What the casing of the product is made of.
Polyvinyl chloride (PVC)
Connector material
Copper
Gallium nitride (GaN) transistors
Power
Input voltage
The voltage (V) which is required to power the product.
0 - 240 V
Input frequency
The frequency (Hz) which is required to power the product.
50 - 60 Hz
Input current
0.5 A
Maximum power
The maximum power that can be put into or produced by the device.
W
Maximum output voltage
V
Minimum output voltage
5 V
Output voltage accuracy (?)
5%
Output current (5V)
3 A
Output current (9V)
2.22 A
Output current (12V)
1.67 A
Power
Power consumption (no load)
0.075 W
Average active efficiency
5V 83.37%, 9V 87.32%,12V 86.40%
Efficiency at low load (10%)
Compatible power plug types
UK
Weight & dimensions
Width
The measurement or extent of something from side to side.
28 mm
Depth
The distance from the front to the back of something.
31 mm
Height
The measurement of the product from head to foot or from base to top.
29.6 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
40 g
Packaging data
Package width
The distance from one side of the packaging to the other.
80 mm
Package depth
The distance from the front to the back of the packaging.
0 mm
Package height
The distance from the top to the bottom of the packaging.
45 mm
Package weight
Weight of the packaged product.
60 g
Package type
The type of product package e.g. box.
Box
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 25 ?C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 80 ?C
Operating relative humidity (H-H)
0 - 90%
Packaging content
Quantity per pack
1 pc(s)
Manual
Certificates
Compliance certificates
CE, REACH, RoHS, UKCA
Sustainability
Sustainability compliance
Sustainability certificates
ErP
