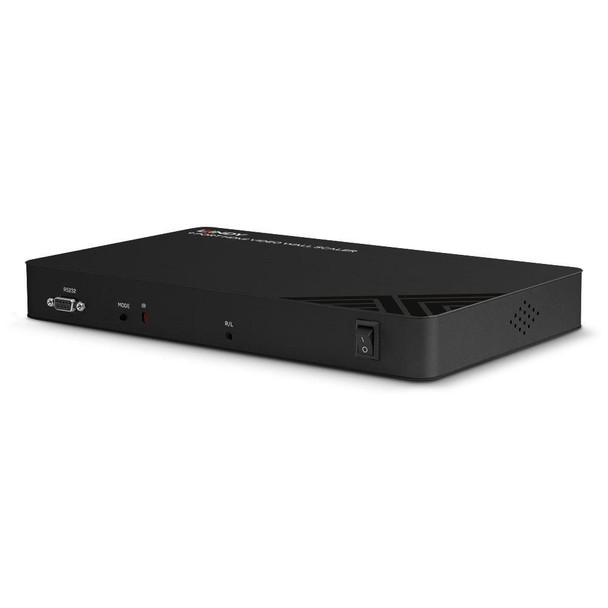

Lindy 38261 9 Port HDMI Video Wall Scaler 38261

The 9 Port HDMI Video Wall Scaler allows a 4K HDMI input source to be arranged on 9 displays in a variety of configurations. The 4k input is divided up in to nine signals and sent to each display at 1080p creating the perfect digital signage or entertainment solution.

The unit features a HDMI input connection which allows one unique source to be used as well as HDMI audio extraction via the 3.5mm Stereo audio output.

This unit has been developed for use in installations which require maximum impact, such as retail, advertising and hospitality. Multiple video wall presets and adjustable picture options means the Scaler can deliver stunning video wall layouts.

Create even bigger Video Walls by combining two units together via HDMI for layouts up to 3x4 or 4x4.

Certificates



Certification



California 65


Features



Control type



Buttons


Housing material



Metal


Product colour



Black


Scaled resolutions



1920 x 1080, 3840 x 2160


Operational conditions



Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



-10 - 45 �C


Storage temperature (T-T)



-10 - 80 �C


Package dimensions



Gross Weight (Package, kg)



0.53 kg


Ports & interfaces



HDMI in



1


HDMI version



1.4


Number of HDMI outputs



9


RS-232 input ports



1


Product dimensions



Net Weight (Product, kg)



0.4 kg


Product Depth



18.5 cm


Product Height



3.5 cm


Product Width



30.5 cm


Technical details



Sustainability certificates



CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA


Sustainability compliance



Yes


Warranty period



2 year(s)


Vendor information



Brand Name


Lindy


Warranty



2 Year(s)


Video



HDCP



Yes


HDCP version



1.4
