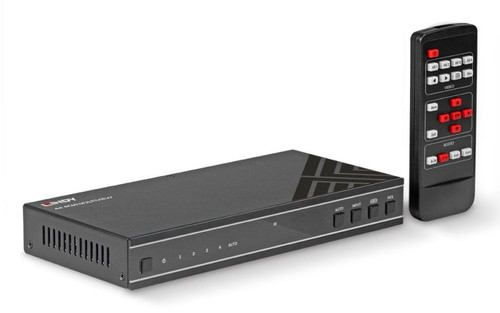

Lindy 4X1 4K60 Hdmi Seamless Multiview Switch. Video Port Type: Hdmi. Material: 38228

Lindy 4x1 4K60 HDMI Seamless Multiview Switch. Video port type: HDMI. Material: Metal, Product colour: Black, Maximum refresh rate: 60 Hz. AC input voltage: 12 V, AC adapter input voltage: 2.5 V. Width: 219 mm, Depth: 111 mm, Height: 30 mm. Package width: 280 mm, Package depth: 179 mm, Package height: 78 mm This HDMI?- 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output. In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as; Digital Presentations CCTV Surveillance & Control Video Conference & Meeting rooms; The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.
Power

AC adapter input voltage2.5 V
AC input voltage12 V

Operational conditions

Operating relative humidity (H-H)20 - 90%
Storage temperature (T-T)-4 - 140 ??C
Operating temperature (T-T)0 - 40 ??C
Storage relative humidity (H-H)20 - 90%

Packaging data

Package weight1.08 kg
Package depth179 mm
Package height78 mm
Package width280 mm

Features

Plug and PlayYes
MaterialMetal
Maximum resolution3840 x 2160 pixels
Product colourBlack
Bandwidth18 Gbit/s
Supported graphics resolutions3840 x 2160
HDCPYes
Maximum refresh rate60 Hz
HDCP version2.2


Weight & dimensions

Weight610 g
Height30 mm
Width219 mm
Depth111 mm

Packaging content

Remote control includedYes
Cables includedHDMI
ManualYes
Screws includedYes
Quantity per pack1 pc(s)

Ports & interfaces

Video port typeHDMI
Audio (L/R) out1
HDMI ports quantity5
HDMI in4
Number of HDMI outputs1
