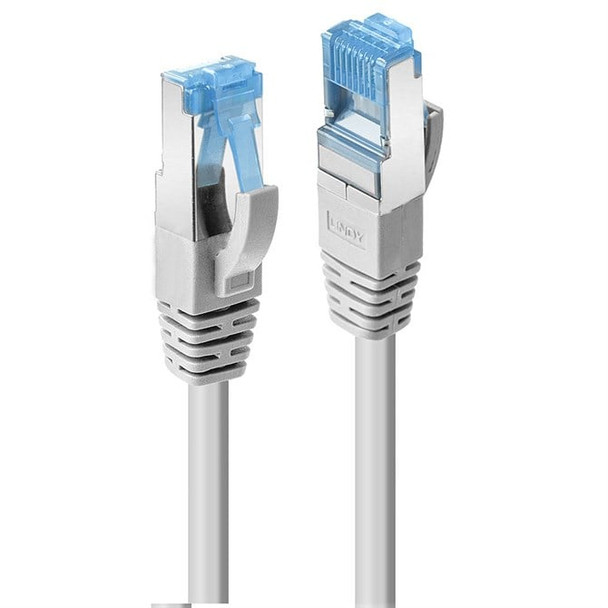

Lindy 5m Cat.6A S/FTP LSZH Cable Grey 47136

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White

Specs




Features


Product colour

The colour e.g. red, blue, green, black, white.

Grey


Cable length

How long the cable is.

5 m


Cable standard

The category of the cable, which is determined by performance characteristics and test requirements.

Cat6a


Cable shielding

The protective layer for the cable, typically made of plastic.

S/FTP (S-STP)


Connector 1

This is the first connector in the device.

RJ-45


Connector 2

This is the second connector in the device.

RJ-45


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male


Connector contacts plating

What the connector contacts are covered with (layer on top).

Nickel/Gold


Connector shielding




Connector shield material

Aluminium


Jacket material

Low smoke zero halogen (LSZH)


Conductor material

Copper


Cable class

Ea


Cabling technology

Type of cable technology performance.
/100/1000Base-T(X)


AWG wire size

27



Features


Data transfer rate

Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
00 Mbit/s


Frequency

500 MHz


Bend radius (min)

7.2 cm


Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Nominal attenuation

49.3dB/100m @ 500MHz


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-10 - 60 ?C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 75 ?C


Certificates


Certification

RoHS, REACH, UL


Weight & dimensions


Outer diameter

6 mm


Connector 1 dimensions (WxDxH)
.6 x 21.5 x 8.3 mm


Connector 2 dimensions (WxDxH)
.6 x 21.5 x 8.3 mm


Packaging content


Quantity per pack

1 pc(s)


Packaging data


Package type

The type of product package e.g. box.

Polybag


Logistics data


Harmonized System (HS) code

84733080
