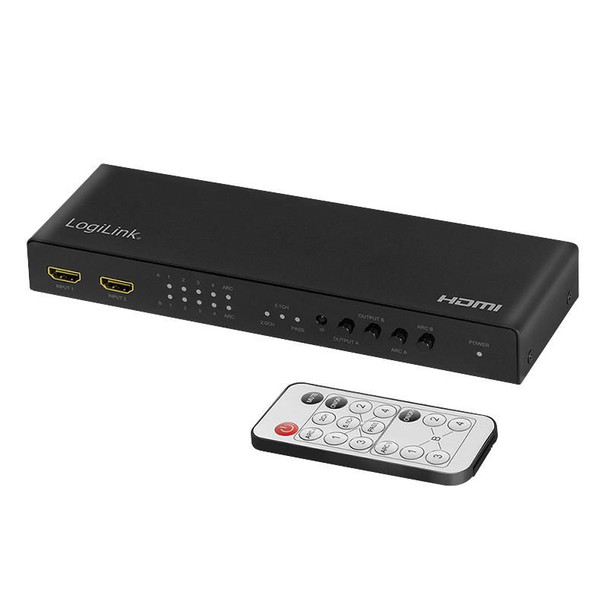

LogiLink HD0049 Matrix Switcher Av Matrix HD0049

The LogiLink 4K HDMI matrix switch combines the advantages of a simple HDMI switch and a HDMI splitter. It routes one or two HDMI video signals from four selectable input signals to one or two selectable HDMI displays each. Control the unit remotely for maximum flexibility for all connected systems. All inputs are suitable for HD video sources such as video camera, HD DVD, receiver, set-top boxes, game consoles, etc. Thanks to Ultra HD (4K/60 Hz) experience media content in brilliantly sharp resolution. The integrated downscaler function supports the display of 4K content on Full HD displays, in addition, both 4K and Full HD displays can be operated simultaneously with support for HDCP 2.2, HDR, CEC as well as 3D. The audio transmission in LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD as well as the connection of an external AV receiver (ARC), also leaves nothing to be desired.

Design



Housing colour



Black


Housing material



Metal


LED indicators



Y, Yes


Remote control included



Yes


Features



3D



Yes


Audio channels



7.1


Bandwidth



6 Gbit/s


HDCP



Yes


HDCP version



2.2


High Dynamic Range (HDR) supported



Yes


Product type



AV matrix switcher


Remote Input Control Over DDC (RICOD)



Yes


Logistics data



Harmonized System (HS) code



85299097


Operational conditions



Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 70 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-10 - 80 �C


Package dimensions



Gross Weight (Package, kg)



0.78 kg


Packaging content



AC adapter included



Yes


Manual



Yes


Ports & interfaces



Audio (L/R) out



2


DC-in jack



Yes


Digital audio coaxial in



2


Digital audio optical out



2


HDMI input ports quantity



4


HDMI output ports quantity



2


HDMI version



2.0


Power



Power consumption (max)



5 Watt


Product dimensions



Net Weight (Product, kg)



0.6 kg


Product Depth



6.6 cm


Product Height



2.6 cm


Product Width



21 cm


Vendor information



Brand Name


LogiLink


Warranty



4 Year(s)
