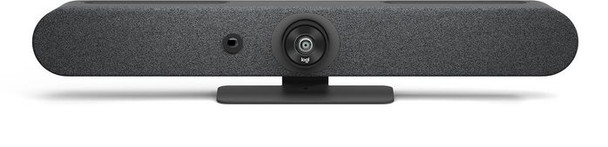

Logitech 991-000388 Rally Bar Mini + Tap IP video 991-000388

Audio



Audio beamforming



Yes


Built-in speaker(s)



Yes


Driver diameter



7 cm


Echo cancellation



Yes


Line-out impedance



4 ?


Microphone pick-up range



4.5 m


Noise reduction



Yes


Output level



92/99 dB


Output voltage Total Harmonic Distortion (THD)



2 %


RMS rated power



8 Watt


Sample rates



0 - 48 kHz


Battery



Battery capacity



0.675 Wh


Camera



Diagonal field of view



120 �


Digital zoom



4 x


Horizontal field of view



113 �


Remote control interface



Bluetooth


Vertical field of view



80.7 �


Zoom capability



Yes


Computer system



Mac operating systems supported



Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey


Windows operating systems supported



Windows 10, Windows 11


Display



Contrast ratio (typical)



1000:1


Display



IPS


Display brightness



400 cd/m�


Display diagonal



10.1 "


Display resolution



1280 x 800 Pixels


Oleophobic coating



Yes


Touchscreen



Yes


Touchscreen type



Capacitive


Viewing angle, horizontal



85 �


Viewing angle, vertical



85 �


Features



Cable lock slot



Yes


Motion sensor



Yes


Telepresence



No


Logistics data



Master (outer) case gross weight



8.87 kg


Master (outer) case height



30.2 cm


Master (outer) case length



80.8 cm


Master (outer) case width



25.8 cm


Microphone



Microphone direction type



Omnidirectional


Microphone frequency



90 - 16000 Hz


Microphone sensitivity



-36 dB


Number of microphones



6


Sound pressure level (max)



90 dB


Network



Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Security algorithms



128-bit AES


Supported network protocols



IPv4, IPv6


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)


Operational conditions



Heat dissipation



64 BTU/h


Operating relative humidity (H-H)



10 - 95 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



80.2 cm


Gross Weight (Package, kg)



10 kg


Height (package,cm)



28.9 cm


Width (package,cm)



25.2 cm


Packaging content



AC adapter included



Yes


Cables included



AC, DC, HDMI, USB Type-A to USB Type-C


Camera included



Yes


HDMI cable length



2 m


Mounting kit



Yes


Power cable length



1.5 m


Quick start guide



Yes


Remote control included



Yes


Performance



Pan range



-25 - 25 �


Product colour



Graphite


PTZ control



Yes


Tilt angle range



-15 - 15 �


Ports & interfaces



DC-in jack



Yes


HDMI input ports quantity



1


HDMI output ports quantity



2


HDMI ports quantity



3


Microphone in



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



3


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


USB connector type



USB Type-A, USB Type-C


Power



AC input voltage



100 - 240 V


Battery capacity



220 mAh


Battery technology



Lithium


Current



4.74 A


DC input voltage



19 V


Number of batteries supported



2


Power plug type



Type C


Power source type



AC


Product dimensions



Net Weight (Product, kg)



9 kg


Product Depth



10.1 cm


Product Height



9.14 cm


Product Width



71.9 cm


Vendor information



Brand Name


Logitech


Warranty



1 Year(s)


Video



HD type



4K Ultra HD


Maximum frame rate



30 fps


Maximum video resolution



3840 x 2160 Pixels


Supported video modes



576p, 720p, 900p, 1440p, 2160p


Weight & dimensions



Interface module dimensions (W x D x H)



246.2 x 171.3 x 56.1 mm


Interface module weight



1 kg
