Logitech 991-000480 Rally Bar Huddle + Tap Ip 991-000480

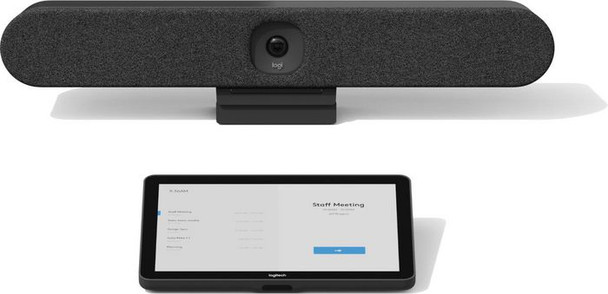

Rally Bar Huddle + Tap IP
Full solution featuring an all-in-one video bar and touch controller with PoE connectivity. Ideal for huddle and small rooms up to 6 people.

Audio



Audio beamforming



Yes


Built-in speaker(s)



Yes


Driver diameter



5.5 cm


Line-out impedance



4 ?


Output voltage Total Harmonic Distortion (THD)



2 %


Sample rates



0 - 48 kHz


Speaker power



8 Watt


Camera



Camera type



Single camera


Diagonal field of view



120 �


Digital zoom



4 x


Horizontal field of view



113 �


Privacy camera



Yes


Privacy type



Privacy shutter


Vertical field of view



80 �


Zoom capability



Yes


Computer system



VESA mounting



Yes


Display



Contrast ratio (typical)



1000:1


Display



IPS


Display brightness



400 cd/m�


Display diagonal



10.1 "


Display resolution



1280 x 800 Pixels


Oleophobic coating



Yes


Touchscreen



Yes


Touchscreen type



Capacitive


Viewing angle, horizontal



85 �


Viewing angle, vertical



85 �


Features



Cable lock slot



Yes


Cable lock slot type



Kensington


Motion sensor



Yes


Telepresence



No


Microphone



Microphone frequency



90 - 16000 Hz


Microphone sensitivity



-36 dB


Number of microphones



6


Sound pressure level (max)



83 dB


Network



Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Security algorithms



128-bit AES


Wi-Fi



Yes


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-25 - 70 �C


Package dimensions



Gross Weight (Package, kg)



11.17 kg


Packaging content



AC adapter included



Yes


Cables included



AC, HDMI, USB


HDMI cable length



2 m


Mounting kit



Yes


Packaging content



Rally Bar Huddle Multi-Mount Power supply AC power cord HDMI cable USB cable


Power cable length



2.5 m


Performance



Bluetooth



Yes


Camera cable length (max)



2.2 m


Number of persons



6 person(s)


Pan range



-48 - 48 �


Product colour



Graphite


Product type



Group video conferencing system


PTZ control



Yes


Tilt angle range



-32 - 32 �


Ports & interfaces



HDMI input ports quantity



1


HDMI output ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity



1


Power



AC input voltage



100 - 240 V


Current



2.1 A


DC input voltage



19 V


Power source type



AC


Product dimensions



Net Weight (Product, kg)



8.59 kg


Product Depth



7.6 cm


Product Height



7.89 cm


Product Width



54.96 cm


Vendor information



Brand Name


Logitech


Warranty



1 Year(s)


Video



HD type



4K Ultra HD


Weight & dimensions



Interface module dimensions (W x D x H)



246.2 x 171.3 x 56.1 mm


Interface module weight



1 kg
