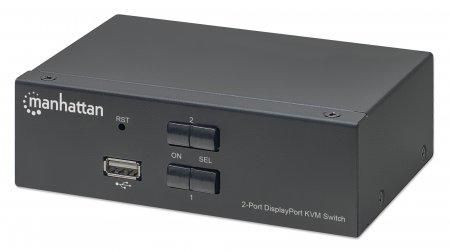

Manhattan 153546 Displayport 1.2 Kvm Switch 153546

DisplayPort KVM Switch with 2 ports � Easy access and control in 4K UHD
The Manhattan 2-Port DisplayPort KVM Switch is a compact solution for providing access and control over two DP/USB-equipped computers from a single keyboard, mouse and monitor. It helps save you time on installation with its included combo cables � there's no need to purchase additional ones � that easily connect directly to the system.

Easy to use for improved efficiency
This KVM Switch helps you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. You select your connected computers and audio/mic channels through the front-panel push-buttons or keyboard hotkeys. The enhanced control this KVM switch provides is ideal for high graphical content in applications like video editing, digital signage server control, medical imaging, multimedia design or dual system control workstations.

4K resolution at 60 Hz and full audio support
The ever-growing demand for higher video quality and the evolution of DisplayPort technology has put 4K-enabled computers and displays in many visually ambitious workplace and commercial applications. Supporting up to 3840 x 2160 (4K) resolution at smooth 60 Hz, this KVM Switch is right at home in your Ultra-High-Definition-equipped setup. Use an MST adapter (available from Manhattan) to connect a second monitor for maximized viewing. You also get full audio compatibility, with support for digital audio and separate analog 3.5 mm stereo audio jacks for microphones and speakers or headphones.

Additional USB hub port
The integrated USB 2.0 hub offers a front-facing USB-A port in addition to keyboard and mouse ports. This hub port works among your attached computers as if it were directly connected to your host computer so you can avoid having to constantly plug/unplug devices such as printers, storage drives or scanners.

Compatible with Windows�, Mac�, Linux� and more
Being OS independent, this DP KVM switch not only supports Windows, Mac OS and Linux, but it is also compatible with Unix� and even Novell� NetWare to fully support older legacy hardware.

Design



Certification



CE RoHS FCC


Housing material



Metal


LED indicators



Y, Yes


Product colour



Black


Display



Built-in display



No


Logistics data



Harmonized System (HS) code



85176200


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 50 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Gross Weight (Package, kg)



1.38 kg


Performance



HD type



4K Ultra HD


HDCP



Yes


Maximum resolution



3840 x 2160 Pixels


Video bandwidth



60 Hz


Ports & interfaces



Console ports



3.5mm headphone, 3.5mm mic, DisplayPort, USB A


DisplayPorts quantity



2


USB 2.0 Type-A hub ports quantity



1


Video port type



DisplayPort


Product dimensions



Net Weight (Product, kg)



1.06 kg


Product Depth



13.2 cm


Product Height



6.6 cm


Product Width



9.2 cm


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Mac OS 9.0, Mac OS 9.1, Mac OS 9.2, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard


Other operating systems supported



FreeBSD, Novell NetWare 6.x


Windows operating systems supported



Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP


Vendor information



Brand Name


Manhattan


Warranty



1 Year(s)
