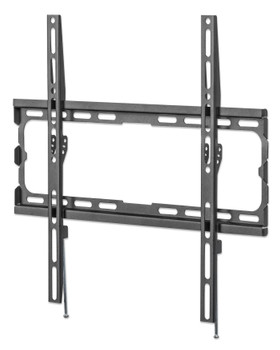

Manhattan Wall Mount for Tv & Monitors Fixed for Screens 32" To 55" Vesa Compata 462396

Manhattan Wall Mount for TV & Monitors (Fixed), For screens 32" to 55", VESA compatability: all between 200x200mm and 400x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 40kg, Black, Bracket. Maximum weight capacity: 45 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 400 x 400 mm. Product colour: Black Ultra Slim TV Wall Bracket - strong mount for flush-as-possible TV installations When viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile Fixed TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances thin, modern TV silhouettes. This ultra-slim TV bracket extends only 20 mm (0.8 in.) from the wall. Constructed of high-quality, powder-coated steel, this TV mounting bracket fits flat and curved LCD, OLED or plasma TVs up to 70"" and weighing up to 45 kg (100 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation that lets you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Miscellaneous

Application/UsageCommercial
Residential
Hospitality
Conference Room
Classroom
Package ContentsLow-Profile Fixed TV Wall Mount
Installation hardware with instructions


Physical Characteristics

FinishingPowder Coated
Weight (Approximate)800 g
Form FactorWall Mountable
Length41.80 cm (16.46")
Height2 cm (0.79")
Width44 cm (17.32")
VESA Mount CompatibleYes
Mounting Pattern400 x 200
75 x 75
400 x 400
400 x 300
300 x 300
300 x 200 0 x 400 0 x 300 0 x 200 0 x 100 0 x 100 0 x 200 0 x 150 0 x 100
300 x 400
Product ColorBlack
Color FamilyBlack
Product MaterialSteel


General Information

Product TypeMounting Bracket
Manufacturer Part Number462396
icintracom
ManufacturerIC INTRACOM
Product NameLow-Profile Fixed TV Wall Mount
Package TypeRetail
Brand NameManhattan

Product Information

Device SupportedDigital Signage Display
Curved Screen Display
Flat Panel Display
LCD Display
OLED TV
Plasma TV
TV
FeaturesHeavy Duty
Maximum Load Capacity45 kg
Minimum Screen Size Supported32" (81.28 cm)
Maximum Screen Size Supported70" (177.80 cm)
Number of Displays Supported1
Mount ProfileLow Profile/Fixed
Mount FunctionWall Mount
