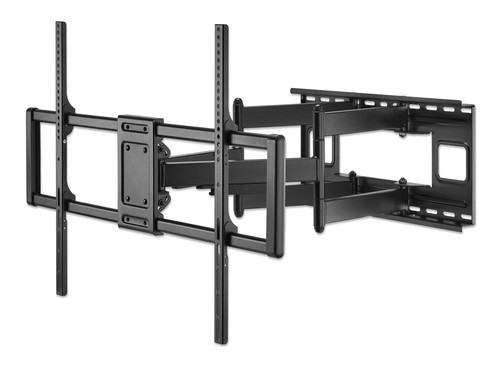

Manhattan Wall Mount for Tv & Monitors Full Motion for Screens 37" To 120" Vesa 462358

Manhattan Wall Mount for TV & Monitors (Full Motion), For screens 37" to 120", VESA compatability: all between 200x200mm and 900x600mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 120kg, Black, Bracket, Lifetime Warranty. Maximum weight capacity: 120 kg, Minimum screen size: 152.4 cm (60"), Maximum screen size: 3.05 m (120"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 900 x 600 mm. Tilt angle range: -15 - 5??, Swivel angle range: -60 - 60??, Ultra Heavy-Duty XXL Articulating TV Wall Bracket --- fully adjustable mounting bracket that puts big-screen TVs in the right perspective and avoids annoying glare This super-strong full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and offers +5 to -15?? tilt and +/-60?? swivel adjustment for optimized views. Constructed of thick reinforced powder-coated steel up to 3 mm, this sturdy TV bracket fits flat and curved LCD, OLED or plasma TVs up to 120"" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level and +/-5?? post-leveling adjustment that helps get the mount perfectly horizontal on the wall. Intuitive quick-release latches let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
General Information

Product TypeMounting Bracket
Manufacturer Part Number462358
icintracom
ManufacturerIC INTRACOM
Product NameHeavy-Duty Large-Screen Full-Motion TV Wall Mount
Package TypeRetail
Brand NameManhattan

Product Information

Device SupportedFlat Panel Display
TV
Plasma TV
OLED TV
Curved Screen Display
LCD TV
Display
FeaturesSturdy
+/- 5?? Level Adjustment
-15?? to 5?? Tilt
+/- 60?? Swivel
Anti-glare
Articulating
Bubble Level
Cable Management
Full Motion
Quick Release Mechanism
Heavy Duty
Maximum Load Capacity120 kg
OrientationHorizontal
Minimum Screen Size Supported60" (152.40 cm)
Maximum Screen Size Supported120" (304.80 cm)
Number of Displays Supported1
Minimum Swivel Angle-60??
Maximum Swivel Angle60??
Minimum Tilt Angle5??
Maximum Tilt Angle15??


Miscellaneous

Application/UsageClassroom
Hospitality
Office
Residential
Commercial
Conference Room
Digital Signage
Package ContentsHeavy-Duty Large-Screen Full-Motion TV Wall Mount
Attachable bubble level
Installation hardware with instructions





Physical Characteristics

FinishingPowder Coated
Weight (Approximate)16.10 kg
Form FactorWall Mountable
Length70.10 cm (27.60")
Height62.99 cm (24.80")
Width100.84 cm (39.70")
VESA Mount CompatibleYes
Mounting Pattern400 x 400
400 x 300
400 x 200
300 x 300
300 x 200
800 x 400
800 x 600
900 x 600
600 x 400 0 x 200
Product ColorBlack
Color FamilyBlack
Product MaterialPowder Coated Steel
