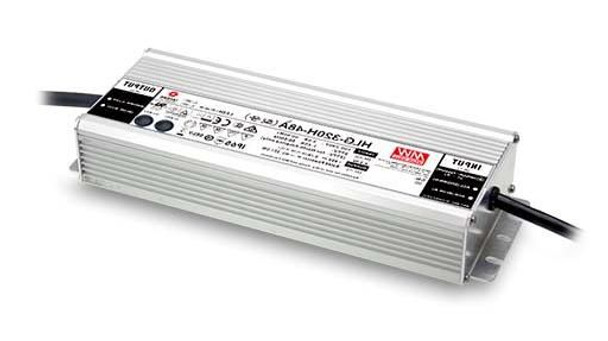

Mean Well HLG-320H-12B Led Driver HLG-320H-12B

HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-320H operates from 90 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40 ~ +90�C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features



International Protection (IP) code



IP65


Operating temperature (T-T)



-40 - 90 �C


Output power



264 Watt


Overheat protection



Yes


Power factor



0.9


Short circuit protection



Yes


Package dimensions



Gross Weight (Package, kg)



0.13 kg


Power



AC input voltage



90 - 305 V


Input current



3.5 / 115VC, 1.65 / 230VC, 1.45 / 277VC A


Input frequency



47 - 63 Hz


Output current



22 A


Output voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.1 kg


Product Depth



25.2 cm


Product Height



4.38 cm


Product Width



9 cm


Vendor information



Brand Name


Mean Well


Warranty



1 Year(s)
