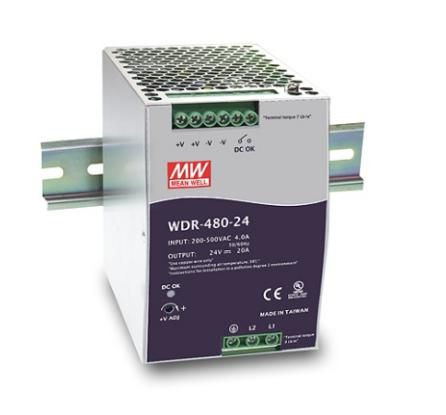

Mean Well WDR-480-24 Power Supply Unit 480 W WDR-480-24

- Wide AC Input Range / 2 Phase
- High efficiency 93% & low dissipation
- Cooling by free air convection
- Installable on DIN rail TS-35/7.5 or 15
- Built-in DC OK relay contact
- 100% full load burn-in test

Design



Cooling type



Passive


Product colour



Metallic


Operational conditions



Operating relative humidity (H-H)



20 - 95 %


Operating temperature (T-T)



-30 - 70 �C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-40 - 85 �C


Other features



Rise time



150 Millisecond


Voltage tolerance



1 %


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



Safety



Ul508 approved, IEC60950-1 CB approved by SIQ, design refer to GL;(meet EN60204-1)


Power



AC input frequency



47 - 63 Hz


AC input voltage



180 - 550 V


Efficiency



92 %


Hold time



18 Millisecond


Input current



1.6 - 4 A


Power factor



0.84


Power Factor Correction (PFC) type



Active


Power protection features



Over voltage, Overheating, Overload, Short circuit


Total power



480 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



12.85 cm


Product Height



12.52 cm


Product Width



8.5 cm


Vendor information



Brand Name


Mean Well


Warranty



1 Year(s)
