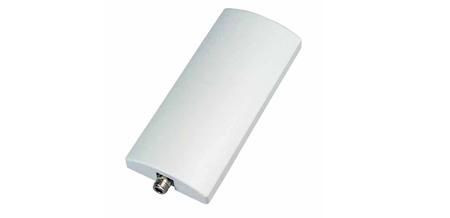

Moxa 41462 2.4GHz DIRECTIONAL ANTENNA. 12 41462

High-gain antenna to enhance performance
Waterproof N-type connector
Lightweight
Compact form factor
Pole-mounting support
IP65 protected housing
-40 to 80?C operating temperature range

Features



Antenna connector type



N-type


Antenna type



Directional antenna


Connector gender



Female


Polarization



Horizontal polarization


Power handling



10 Watt


Product colour



White


Purpose



Indoor


Voltage Standing Wave Ratio (VSWR)



1:1.5


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 80 °C


Storage temperature (T-T)



-40 - 80 °C


Package dimensions



Depth (package,cm)



25 cm


Gross Weight (Package, kg)



0.63 kg


Height (package,cm)



4.5 cm


Width (package,cm)



10.5 cm


Performance



Antenna gain level (max)



12 dBi


Frequency band



2.4 - 2.5 GHz


Horizontal beam width



50 °


Impedance



50 ?


Vertical beam width



30 °


Product dimensions



Net Weight (Product, kg)



0.53 kg


Product Depth



9 cm


Product Height



3 cm


Product Width



21.5 cm


Vendor information



Brand Name


Moxa


Warranty



2 Year(s)
