Moxa
Moxa 42571 INDUSTRIAL UNMANAGED ETHERNETS 42571
- UPC:
- 5703431425712
- MPN:
- 42571
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Introduction

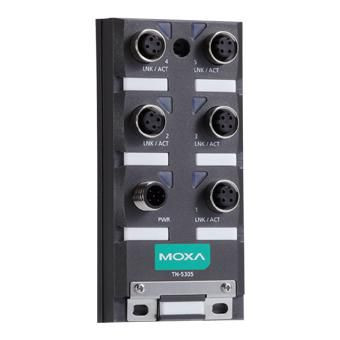

The TN-5305 series Ethernet switches are IP67-rated for tough industrial applications. By using M12 connectors, you can rest assured that Ethernet cables will connect tightly to the switch, and will be robust enough to protect your applications from external disturbances, such as the vibration and shock encountered in the transportation industry. The space-saving TN-5305 switches can be mounted virtually anywhere, and wide operating temperature (-40 to 75�C) models are also available for use in the most extreme weather conditions. The TN-5305 Series Ethernet switches comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.
Design
Housing material
Plastic
International Protection (IP) code
IP67
Product colour
Black
Safety
UL/cUL 508
Management features
Switch type
Unmanaged
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-25 - 60 �C
Storage temperature (T-T)
-40 - 85 �C
Other features
Input voltage
24/36 V
Package dimensions
Depth (package,cm)
11 cm
Gross Weight (Package, kg)
0.5 kg
Height (package,cm)
8 cm
Width (package,cm)
23 cm
Performance
Mean time between failures (MTBF)
3451678 Hour
Power
AC input frequency
47/63 Hz
DC input voltage
18 - 30 V
Input current
0.08 - 0.28 A
Input voltage
24/36 V
Product dimensions
Net Weight (Product, kg)
0.25 kg
Product Depth
2.96 cm
Product Height
12.5 cm
Product Width
6 cm
Vendor information
Brand Name
Moxa
Warranty
2 Year(s)
