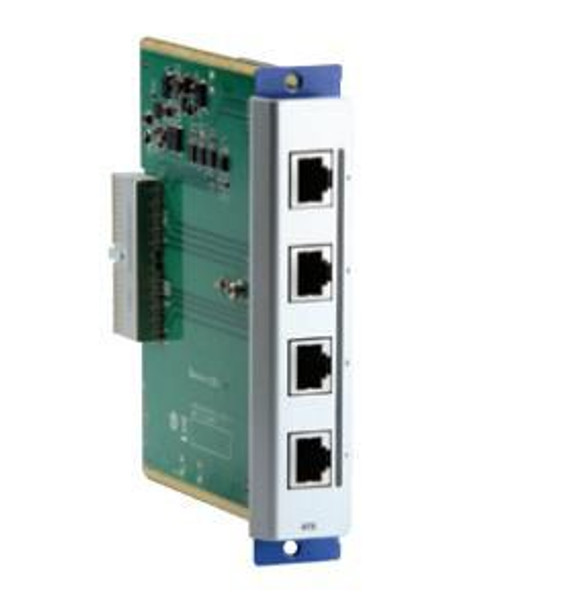

Moxa 44264 ETHERNET SWITCH MODULE for EDS 44264

Moxa's CM-600 series offer a rich selection of industrial Ethernet interface modules for the EDS-600 modular Ethernet switches. The new CM-600-4TX-PTP switch module for EDS-600 series industrial Ethernet switches that support the IEEE 1588 V2 protocol enhances the performance of the EDS-600 series in time-critical industrial environments. This new feature reduces the message delay between devices at the micro-second level. Compared to traditional devices that rely on GPS for time synchronization, the IEEE 1588 V2-compliant CM-600-4TX-PTP switch module enables you to synchronize your devices over an Ethernet network without any extra effort. Enjoy the greater flexibility and expandability by choosing from a diverse selection of 4-port Fast Ethernet modules with copper or fiber optic (SC/ST) connectors. Users can easily set up a versatile connectivity solution well-suited for specific application needs.

Network



Copper ethernet cabling technology



100BASE-T, 100BASE-TX, 10BASE-T


Ethernet interface type



Fast Ethernet


Ethernet LAN data rates



10, 100


Full duplex



Yes


Optical fiber



RX sensitivity



-32 dB


Package dimensions



Gross Weight (Package, kg)



0.19 kg


Performance



Compatibility



EDS-600


Ports & interfaces



Ethernet LAN (RJ-45) ports



4


Product dimensions



Net Weight (Product, kg)



0.18 kg


Vendor information



Brand Name


Moxa


Warranty



2 Year(s)


Weight & dimensions



Dimensions (WxDxH)



29.7 x 144.8 x 144.4 mm
