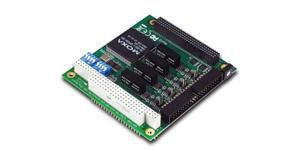

Moxa CB-134I-T Interface Cards/Adapter CB-134I-T
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- CB-134I-T
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
4-port RS-422/485 PC/104-Plus modules with 2 KV optical isolation protection
The CB-134I PC/104-Plus module comes with 4 RS-422/485 ports, and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and the CB-134I's versatile driver support makes the module suitable for a wide range of applications. The CB-134Imodule can be used on the PC/104-Plus (PCI) bus, and provides a reliable, high performance solution for multiport serial communication.
- 921.6 Kbps maximum baudrate for super fast data transmission.
- On-chip H/W and S/W flow control.
- Built-in 15 KV ESD protection.
- Serial interface is DIP switch selectable.
- Onboard Tx and Rx LED indicators for each port.
- Windows CE 5.0 and Windows XP embedded operating systems supported.
- Wide temperature model available for -40 to 85�C environments.
Design
Certification
FCC EMS: EN55022, EN55024, EN61000-3-2, EN61000-3-3, IEC 61000-6-2, IEC 61000-6-4, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 85 �C
Storage temperature (T-T)
-40 - 85 �C
Other features
Compatible operating systems
Windows 9X, ME, NT, 2000 Windows XP, 2003, Vista, 2008, 7 (x86/x64) Windows CE 5.0/6.0 Windows XP Embedded DOS Linux 2.4, Linux 2.6 (x86/x64) QNX 6
Connectivity technology
Wired
Data transfer rate
0.922 Mbit/s
Electrostatic Discharge (ESD) protection
15 kV
Mac compatibility
No
Ports quantity
4
Package dimensions
Gross Weight (Package, kg)
0.26 kg
Ports & interfaces
Connector(s)
40-pin
Host interface
IDE
Serial interface type
RS-422, RS-485
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
9.6 cm
Product Width
9 cm
Vendor information
Brand Name
Moxa
Warranty
1 Year(s)
