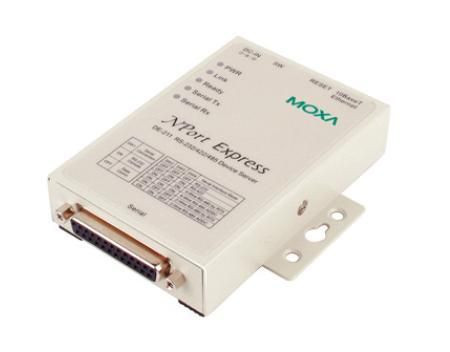

Moxa DE-311 NPort Express DE-311 Network DE-311

- 3-in-1 serial port: RS-232, RS-422, or RS-485
- Versatile operation modes including TCP Server, TCP Client, UDP, Ethernet Modem, and Pair Connection
- Real COM/TTY drivers for Windows and Linux
- 10M and 100M Ethernet speeds detected automatically
- 2-wire RS-485 with patented Automatic Data Direction Control (ADDC�)
- Built-in 15 KV ESD protection for all serial signals

The NPort� DE-211 and DE-311 are 1-port serial device servers that support RS-232, RS-422, 4-wire RS-485, and 2-wire RS-485. The DE-211 supports 10 Mbps Ethernet connections and has a DB25 female connector for the serial port. The DE-311 supports 10/100 Mbps Ethernet connections and has a DB9 female connector for the serial port. Both device servers are ideal for applications that involve information display boards, PLCs, flow meters, gas meters, CNC machines, and biometric identification card readers.

Design



Product colour



White


Network



Cabling technology



10/100Base-T(X)


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 55 �C


Storage temperature (T-T)



-40 - 85 �C


Other features



Operating temperature (T-T)



32 - 131 �F


Package dimensions



Gross Weight (Package, kg)



0.49 kg


Performance



Auto MDIX IEEE



Yes


Mean time between failures (MTBF)



225529 Hour


Type



Network transmitter & receiver


Ports & interfaces



Ethernet LAN (RJ-45) ports



1


Product dimensions



Net Weight (Product, kg)



0.48 kg


Product Depth



10.04 cm


Product Height



2.2 cm


Product Width



6.7 cm


Vendor information



Brand Name


Moxa
