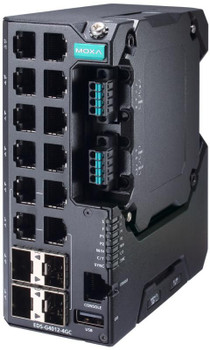

Moxa EDS-G4012-4GC-HV-T EDS-G4012-4GC-HV-T EDS-G4012-4GC-HV-T

Managed Full Gigabit Ethernet switch with 8*10/100/1000BaseT(X) ports, 4*10/100/1000BaseT(X) or 100/1000BaseSFP ports, single power supply 110/220 VAC/VDC, -40 to 75�C operating temperature

Data transmission



MAC address table



16000 entries


Packet buffer memory



1 MB


Design



DIN rail mounting



Yes


Housing material



Metal


International Protection (IP) code



IP40


Product colour



Black


Rack mounting



No


Management features



MIB support



P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9


Switch layer



L2


Switch type



Managed


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


Half duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Rate limiting



Yes


Spanning tree protocol



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Depth (package,cm)



19 cm


Gross Weight (Package, kg)



1 kg


Height (package,cm)



7 cm


Width (package,cm)



20 cm


Performance



Mean time between failures (MTBF)



456870 Hour


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Console port



RS-232


Power



AC input frequency



50/60 Hz


AC input voltage



110 - 220 V


Input current



0.3 A


Power consumption (max)



15.8 Watt


Power source



DC


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



90 Watt


Product dimensions



Net Weight (Product, kg)



0.882 kg


Product Depth



12.25 cm


Product Height



5.5 cm


Product Width



14 cm


Protocols



Management protocols



IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB


Supported network protocols



IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog


Security



IGMP entries



512


Technical details



Warranty period



5 year(s)


Vendor information



Brand Name


Moxa


Homepage



https://shop.thiim.com/TradePoint141/tradepoint/b2c/ui/catalog/itemview.aspx?key=52827


Warranty



5 Year(s)
