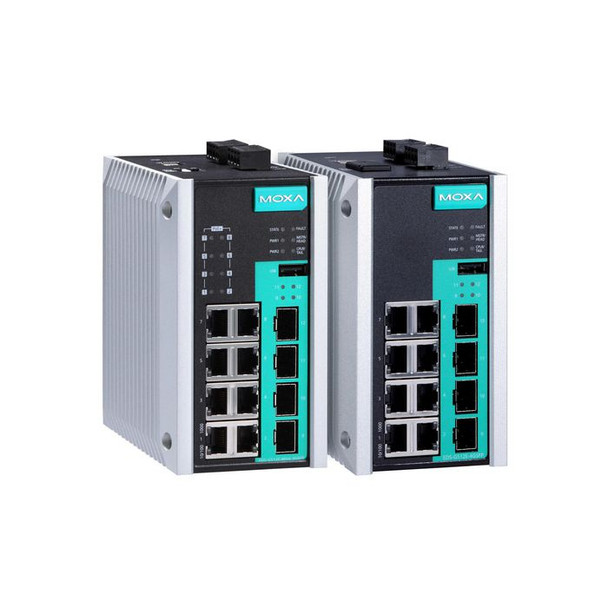

Moxa EDS-G512E-8POE-4GSFP Network Switch Managed EDS-G512E-8POE-4GSFP
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- EDS-G512E-8POE-4GSFP
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Introduction
The EDS-G512E Series is equipped with 12 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. It also comes with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet port options to connect high-bandwidth PoE devices. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G512E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
Design
DIN rail mounting
Yes
Housing material
Metal
International Protection (IP) code
IP30
Product colour
Grey
Management features
MIB support
Ethernet-like MIB, MIB-II, Bridge MIB, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Switch type
Managed
Network
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-TX
Flow control support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-10 - 60 �C
Storage temperature (T-T)
-40 - 85 �C
Package dimensions
Gross Weight (Package, kg)
1.3 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
12
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Console port
RJ-45/USB Type-B
Installed SFP modules quantity
4
Power
Input current
5.3 A
Input voltage
48 V
Power protection features
Overload, Reverse polarity
Power source
DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Product dimensions
Net Weight (Product, kg)
1 kg
Product Depth
13.5 cm
Product Height
13.7 cm
Product Width
7.92 cm
Vendor information
Brand Name
Moxa
Warranty
1 Year(s)
