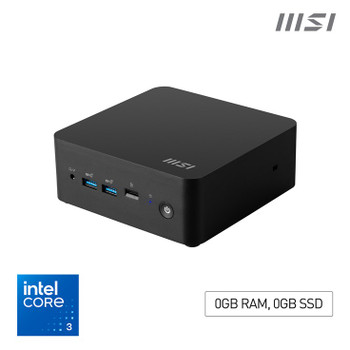

MSI Cubi NUC 1M Intel Core 3 100U Desktop PC NUC SFF Mini Computer HTPC 8GB RAM Cubi NUC 1M i3 100U FS 8GB 512GB W11P

Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups). The Cubi NUC 1M i3 100U FS 8GB 512GB W11P configuration is a complete system equipped with an Intel- Core 3 processor 100U, 8 GB of DDR5-5200MHz memory, 512 GB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro software pre-installed. The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop. Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design. Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A

Processor Processor manufacturer The manufacturer that produced the processor. Intel Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. Intel Core 3 Processor generation Intel Core (Series 1) Processor model The model number for the processor in a computer. 100U Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). 6 Processor threads 8 Performance cores 2 Efficient cores 4 Performance-core Max Turbo Frequency 4.7 GHz Efficient-core Max Turbo Frequency 3.3 GHz Performance-core base frequency 1.2 GHz Efficient-core base frequency 0.9 GHz Processor cache 10 MB Number of processors installed Number of processors in the product. 1 Processor base power 15 W Maximum turbo power 55 W Memory Internal memory A computer's memory which is directly accessible to the CPU. 8 GB Maximum internal memory The maximum internal memory which is available in the product. 64 GB Internal memory type The type of internal memory such as RAM, GDDR5. DDR5-SDRAM Memory layout (slots x size) The slots and size of the memory for the CPU. 1 x 8 GB Memory slots Number and type of memory expansion slots, including connector and memory module descriptions. 2x SO-DIMM Memory clock speed The frequency at which the memory (e.g. RAM) runs. 5200 MHz Storage Total storage capacity The total amount of data that can be stored on the device. 512 GB Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). SSD Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM. Number of storage drives installed Amount of storage drives built into the device. 1 Number of storage drives supported How many storage drives can be fit into the product at once. 3 HDD size The amount of data that the hard drive can store. 2.5" Total SSDs capacity 512 GB Number of SSDs installed 1 SSD capacity The Solid State Drive's data storage capacity. 512 GB SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware. M.2 NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. SSD form factor The size of the solid-state drive, given in inches M.2 M.2 SSD size 2280 (22 x 80 mm) Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card. Compatible memory cards Types of memory cards which can be used with this product. MicroSD (TransFlash) Graphics Discrete graphics card On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. Not available On-board GPU manufacturer Intel On-board graphics card family Intel- Graphics On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. Intel- Graphics Network Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. LAN controller Intel I226-V Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. Wi-Fi 6E (802.11ax) Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. Wi-Fi 6E (802.11ax) WLAN controller manufacturer Intel WLAN controller model Intel Wi-Fi 6E AX211 Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). 5.3 Wake-on-LAN ready Ports & interfaces USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4 PowerShare USB Type-C DisplayPort Alternate Mode Intel- Thunderbolt 4 Thunderbolt 4 ports quantity 2 DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
