MSI Cubi NUC 1M Intel Core 7 150U 14th Gen Barebone NUC SFF Mini Computer HTPC N 4.71138E+12

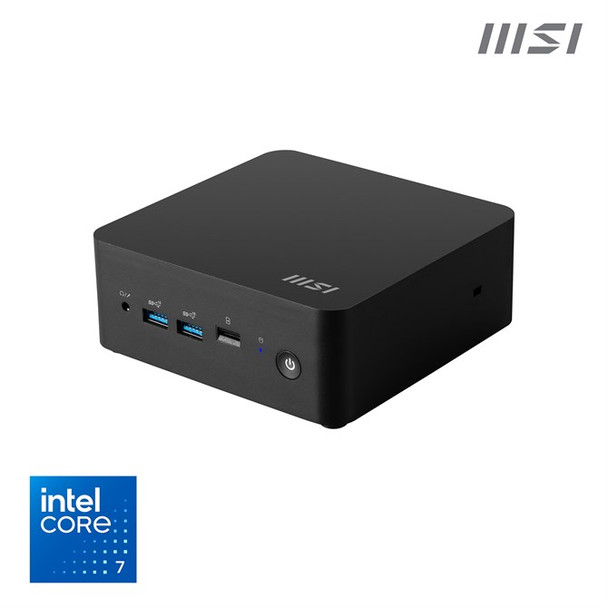

Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC

The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).

The Cubi NUC 1M i7 150U BB configuration is a barebone system equipped with an Intel® Core 7 processor 150U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.

The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.

Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A

Specs




Processor


Processor manufacturer

The manufacturer that produced the processor.

Intel


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Intel Core 7


Processor generation

Intel Core (Series 1)


Processor model

The model number for the processor in a computer.
0U


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).



Processor threads



Performance cores

2


Efficient cores

8


Performance-core Max Turbo Frequency

5.4 GHz


Efficient-core Max Turbo Frequency

4 GHz


Performance-core base frequency

1.8 GHz


Efficient-core base frequency

1.2 GHz


Built-in processor

Whether or not a processor is built into the device.




Processor cache
MB


Memory


Internal memory installed




Memory slots type

A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.

SO-DIMM


Number of memory slots

2


Maximum internal memory

The maximum internal memory which is available in the product.

64 GB


Supported memory clock speeds

Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.

5200 MHz


Supported memory types

Types of memory which can be used with the product.

DDR5-SDRAM


Storage


Supported storage drive types

The type of storage drives the device is compatible with.

HDD & SSD


Storage drive sizes supported

The sizes of storage drives that can be used with the product.

2.5, M.2


SSD form factor

The size of the solid-state drive, given in inches

M.2


Storage drive interface

Where the storage device links with other parts of the product, or an external device.

M.2, Serial ATA, Serial ATA II, Serial ATA III


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




Number of storage drives supported

How many storage drives can be fit into the product at once.

3


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




Compatible memory cards

Types of memory cards which can be used with this product.

MicroSD (TransFlash)


Graphics


On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




Graphics card family

Intel


On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel Graphics


Number of displays supported

The number of displays that can be used with this product.

4


Audio


Built-in speaker(s)

The device contains speaker(s) to produce sound.




Network


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6E (802.11ax)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 6E (802.11ax)


WLAN controller model

Intel Wi-Fi 6E AX211


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Copper ethernet cabling technology

2.5GBASE-T


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




LAN controller

Intel I226-V


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Bluetooth version

The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.3


Near Field Communication (NFC)




Ports & interfaces


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2


HDMI version

1.4b/2.1


DVI port

Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.




Microphone in

The socket where a microphone is connected to the device.




Combo headphone/mic port




Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

2


S/PDIF out port

S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.




CardBus PCMCIA slot type

The type of slots for CardBus PCMCIA.





Ports & interfaces


Consumer infrared headers




Serial port via internal header




USB charging




TV-out




Thunderbolt 4 ports quantity

2


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Expansion slots


Number of M.2 (M) slots

2


Design


Chassis type

The type of rigid framework onto which is the hosuing for device components.

0.84L sized PC


Product colour

The colour e.g. red, blue, green, black, white.

Black


Cooling type

The method used to cool the device or to cool the air around the device.

Active


On/off switch

The button which is pressed to switch the device on or off.




LED indicators

System


Housing material

What the casing of the product is made of.

Plastic


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


VESA mounting




Panel mounting interface

The product can be used wih VESA mounting interfaces.

75 x 75,100 x 100 mm


Product type

The sub-category of the product.

Mini PC barebone


Performance


Motherboard form factor

Design of the motherboard (ATX, BTX etc).

NUC


Motherboard chipset

The chipset connects the microprocessor to the rest of the motherboard.

Intel SoC


Number of processors supported

The quantity of processors which can be used by the product.

1


Trusted Platform Module (TPM)




Trusted Platform Module (TPM) version

2.0


Software


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro


Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.




Sustainability


Sustainability certificates

ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic


Power


Power supply type

The type of power supply which this product uses.

External AC adapter


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
0 W


Number of power supply units

1


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Weight & dimensions


Width

The measurement or extent of something from side to side.
2.5 mm


Depth

The distance from the front to the back of something.
5.6 mm


Height

The measurement of the product from head to foot or from base to top.

50.1 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.625 g


Package width

The distance from one side of the packaging to the other.
5 mm


Package depth

The distance from the front to the back of the packaging.

220 mm


Package height

The distance from the top to the bottom of the packaging.

94 mm


Package weight

Weight of the packaged product.

1.45 g


Packaging content


Power cord included




AC adapter included




Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Drivers included




Display included

This product includes a display.




Mouse included

A mouse is included with this product.




Keyboard included

A keyboard is part of the bundle/set.




Other features


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

China


Introduction month

July


Introduction year
24


Warranty period

3 year(s)
