Msi

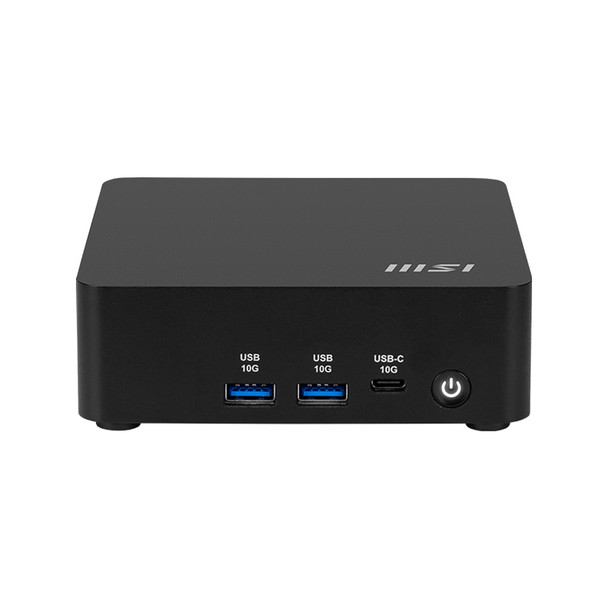

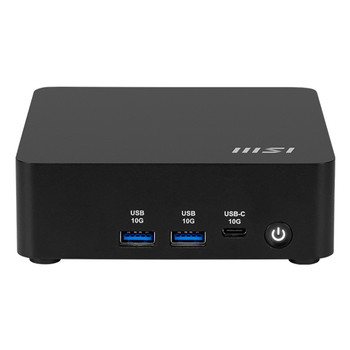

MSI Cubi NUC AI 1UMG i7 155H FS 16GB 1TB W11P 1.4 GHz Intel Core Ultra 7 155H 16 CubiNUC AI 1UMG i7 155H FS 16GB 1TB W11P
(No reviews yet)
Write a Review
- UPC:
- 4711377358019
- MPN:
- CubiNUC AI 1UMG i7 155H FS 16GB 1TB W11P
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
The Cubi NUC AI 1UM is a mini pc equipped with Intel AI Boost NPU and Intel CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.
Up to Intel CoreTM Ultra 7 processor 155H with Intel AI Boost NPU -Equipped with a built-in Intel AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience
RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB). 1 x M.2 2280 SSD (PCIE, factory pre-installed) 1x M.2 2242 SSD (PCIE, free slot)
The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content
Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included
The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series
The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment
The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free
The two rear Thunderbolt 4 ports support the display and power delivery output of 15W
Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload
Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
Features
Up to Intel CoreTM Ultra 7 processor 155H with Intel AI Boost NPU
Supports DDR5 5200MHz memory
Supports 1x M.2 2280 SSD (PCIE, factory pre-installed), 1x M.2 2242 SSD (PCIE)
Quadruple monitor support (Thunderbolt 4, HDMI 2.1)
1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front
MSI Power Link support
MSI Power Meter software
Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3
Processor special features
Video encode engine
Yes
Video decode engine
Yes
Processor
Processor base power
28 W
Processor cache
24 MB
Performance cores
6
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
4.8 GHz
Performance-core base frequency
1.4 GHz
Maximum turbo power
5 W
Efficient cores
8
Processor cache type
Smart Cache
Processor family
Intel Core Ultra 7
Efficient-core Max Turbo Frequency
3.8 GHz
Processor boost frequency
4.8 GHz
Efficient-core base frequency
1 GHz
Number of processors installed
1
Processor frequency
1.4 GHz
Low Power Efficient-core Base Frequency
800 MHz
Processor model
5H
Processor threads
22
Processor manufacturer
Intel
Processor cores
Memory
Internal memory type
DDR5-SDRAM
Memory clock speed
5600 MHz
Memory slots
2x SO-DIMM
Internal memory
GB
Memory layout (slots x size)
2 x 8 GB
ECC
No
Non-ECC
Yes
Maximum internal memory
64 GB
Memory channels
Dual-channel
Memory data transfer rate
5600 MT/s
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
PSTI certified
No
Compliance certificates
CE, Federal Communications Commission (FCC)
Other features
Locale
English
Built-in microphone
No
Special features
Thunderbolt 4, VESA Mount Kit
TV tuner integrated
No
Warranty period
3 year(s)
Video compression formats
AV1, AVC, HEVC
Video formats supported
MKV, MP4, VP9
Ports & interfaces
Number of front audio ports
1
DisplayPort version
1.4
DisplayPorts quantity
2
Number of rear USB ports
4
USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity
2
Thunderbolt 4 ports quantity
2
Intel Thunderbolt 5
No
HDMI ports quantity
2
USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity
1
PowerShare
No
Microphone in
No
USB Type-C DisplayPort Alternate Mode
Yes
Intel Thunderbolt 4
Yes
Line-out
No
Ethernet LAN (RJ-45) ports
1
S/PDIF out port
No
DVI port
No
HDMI version
2.1a
DC-in jack
No
Fiber NIC port (Flex I/O)
No
Combo headphone/mic port
No
Line-in
No
Number of front USB ports
2
Number of rear audio ports
2
Graphics
Ray tracing acceleration
Yes
Graphics card DisplayPorts quantity
2
On-board graphics card family
Intel Arc Graphics
Number of external displays supported
4
Graphics card HDMI ports quantity
2
On-board graphics card 8K support
Yes
On-board GPU manufacturer
Intel
Discrete graphics card
No
Graphics card USB Type-C ports quantity
1
Graphics card Open GL support
Yes
CUDA
No
AMD FreeSync
No
On-board graphics card
Yes
NVIDIA G-SYNC
No
On-board graphics card 6K support
Yes
Discrete GPU manufacturer
Intel
NVIDIA GameWorks VR
No
On-board graphics card model
Intel Arc Graphics
On-board graphics card cores
8
Discrete graphics card model
Not available
Design
Cable lock slot
No
Placement supported
Horizontal/Vertical
Product colour
Black
Viewing window
No
Chassis type
Mini PC
RGB memory lighting
No
VESA mounting
Yes
Colour name
black
Country of origin
China
Certified refurbished
No
Volume
1.35 L
Water cooling system
No
Copilot key
Yes
Housing material
Metal, Plastic
Storage
Storage media
SSD
M?2 SSD size
2280 (22 x 80 mm)
NVMe
Yes
HDD capacity
0 GB
Card reader integrated
No
Total HDDs capacity
0 GB
Embedded storage capacity
0 MB
Total SSDs capacity
1 TB
SSD interface
PCI Express 4.0
Optical drive type
No
Intel Optane Memory module capacity
0 GB
SSD capacity
1 TB
SSD form factor
M.2
Number of storage drives supported
2
Number of storage drives installed
1
Intel Optane Memory module installed
No
Total storage capacity
1 TB
Number of SSDs installed
1
Weight & dimensions
Package height
94 mm
Package depth
220 mm
Package width
5 mm
Height
37.5 mm
Width
9.6 mm
Depth
5.2 mm
Packaging content
Power cable length
1.2 m
Cables included
Power
Numeric keypad
No
VESA mount included
Yes
Keyboard included
No
Manual
Yes
Mouse included
No
Keyboard backlit
No
Screws included
Yes
Neural processor unit (NPU)
Windows Studio effects support
No
Neural processor unit (NPU)
No
Sparsity support
No
Technical details
Not classified as hazardous under GHS
Yes
Statement of conformance & platform certificate included
No
Network
Antenna type
2x2
Bluetooth
Yes
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
Ethernet LAN
Yes
Bluetooth Low Energy (BLE)
Yes
Wake-on-LAN ready
Yes
LAN controller
Realtek RTL8111H
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Cabling technology
/100/1000Base-T(X)
Miracast
Yes
Bluetooth version
5.3
Ethernet LAN data rates
00 Mbit/s
Software
Windows 11 free upgrade
Yes
Operating system architecture
64-bit
Copilot+ PC
No
Operating system installed
Windows 11 Pro
Drivers included
Yes
Operating system language
English
Apple Intelligence
No
Compatible operating systems
Windows 11 / Windows 10Pro)
Pre-installed software
Yes
Operational conditions
Operating temperature (T-T)
0 - 35 C
Operating relative humidity (H-H)
0 - 85
Storage relative humidity (H-H)
0 - 90
Storage temperature (T-T)
-20 - 60 C
Performance
Motherboard chipset
ZhaoXin SoC
Product type
Mini PC
Trusted Platform Module (TPM)
Yes
BIOS type
UEFI
Virtual Reality (VR) ready
Yes
Trusted Platform Module (TPM) version
2.0
Audio output channels
2.0 channels
Audio system
High Definition Audio
Password protection
Yes
Powered by
Intel
Fingerprint reader
No
Built-in speaker(s)
No
Password protection type
BIOS, User
Audio chip
Realtek ALC256
Market positioning
Business
Power
Power consumption (typical)
35 W
USB Type-C output power
W
Power consumption (standby)
5 W
Power supply input frequency
50 - 60 Hz
Power supply input voltage
0 - 240 V
Power supply
0 W
Power consumption (max)
5 W
Display
Display included
No
