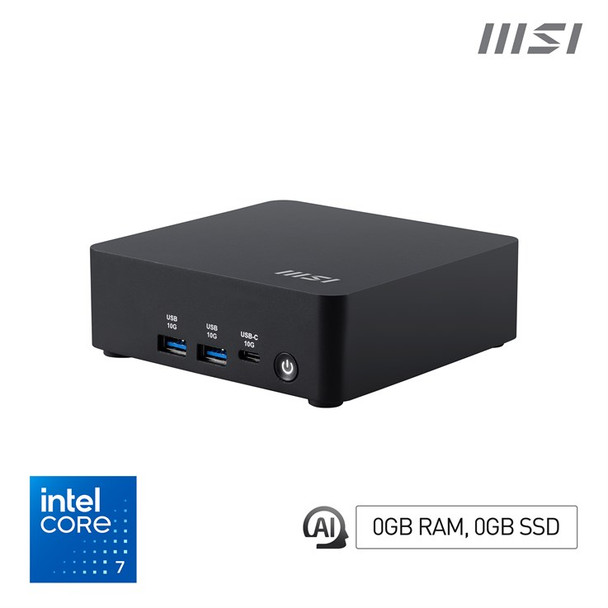

MSI Cubi NUC AI 1UMG Intel Core Ultra 7 155H Barebone NUC SFF Mini Computer HTPC Cubi NUC AI 1UMG i7 155H BB

The Cubi NUC AI 1UM is a mini pc equipped with Intel AI Boost NPU and Intel CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.

Up to Intel CoreTM Ultra 7 processor 155H with Intel AI Boost NPU -Equipped with a built-in Intel AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience
RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB).

The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content
Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included
The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series
The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment
The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free
The two rear Thunderbolt 4 ports support the display and power delivery output of 15W
Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload
Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation

Features


Up to Intel CoreTM Ultra 7 processor 155H with Intel AI Boost NPU


Supports DDR5 5200MHz memory


Supports 1x M.2 2280 SSD (PCIE, factory pre-installed), 1x M.2 2242 SSD (PCIE)


Quadruple monitor support (Thunderbolt 4, HDMI 2.1)


1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front


MSI Power Link support


MSI Power Meter software


Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3



Processor special features


Intel Platform Trust Technology (Intel PTT)

Yes


Intel Smart Connect Technology

No


Intel Optane Memory Ready

No


Intel Turbo Boost Technology

Yes


Thermal Monitoring Technologies

Yes


Intel Rapid Storage Technology

Yes


Intel FDI Technology

No


Intel Flex Memory Access

Yes


Intel Unite installed

No


Intel Matrix Storage Technology (Intel MST)

No


Intel High Definition Audio (Intel HD Audio)

Yes


Intel Smart Response Technology

No


Conflict-Free

Yes


Intel vPro Platform Eligibility

No


Execute Disable Bit

Yes


Intel Stable Image Platform Program (SIPP)

No


Intel Smart Cache

Yes


Intel Virtualization Technology (VT-x)

Yes


Intel Wireless Display (Intel WiDi)

No


Intel Secure Key

Yes


Intel 64

Yes


Intel Clear Video HD Technology (Intel CVT HD)

Yes


Intel Anti-Theft Technology (Intel AT)

No


Enhanced Intel SpeedStep Technology

Yes


Intel Trusted Execution Technology

No


Intel Visual BIOS

No


Intel Dual Display Capable Technology

Yes


Intel Fast Memory Access

No


Embedded options available

No


Intel Demand Based Switching

Yes


Intel Rapid Start Technology

No


Idle States

Yes


Intel OS Guard

Yes


Intel Insider

No


Intel On-Demand Power Redundancy Technology

No


Intel InTru 3D Technology

No


Intel My WiFi Technology (Intel MWT)

No


Intel Identity Protection Technology (Intel IPT)

Yes


Intel Small Business Advantage (Intel SBA)

No


Intel Advanced Management Technology

No


Intel Unite

No


Intel Clear Video Technology

Yes


Intel Virtualization Technology for Directed I/O (VT-d)

Yes


Intel Express BIOS update

No


Intel TSX-NI

No


Intel AES New Instructions (Intel AES-NI)

Yes


Intel VT-x with Extended Page Tables (EPT)

Yes


Intel Quick Sync Video Technology

Yes


Intel Hyper Threading Technology (Intel HT Technology)

Yes


Intel Virtualization Technology (Intel VT)

Yes



Processor


Processor lithography

7 nm


L2 cache
MB


Processor cache

24 MB


Thermal Design Power (TDP)

28 W


Performance cores

6


Low Power Efficient-cores

2


Performance-core Max Turbo Frequency

4.8 GHz


Performance-core base frequency

1.4 GHz


Efficient cores

8


Processor family

Intel Core Ultra 7


Efficient-core Max Turbo Frequency

3.8 GHz


Processor boost frequency

4.8 GHz


ECC supported by processor

No


Efficient-core base frequency

1 GHz


L3 cache
MB


Built-in processor

Yes


Processor frequency

1.4 GHz


Low Power Efficient-core Base Frequency

800 MHz


Processor model
5H


Processor threads

22


Processor manufacturer

Intel


Processor cores




Memory


Supported memory types

DDR5-SDRAM


Memory bandwidth (max)

64 GB/s


ECC

No


Non-ECC

No


Number of memory slots

2


Maximum internal memory

64 GB


Memory slots type

SO-DIMM


Supported memory clock speeds

5200 MHz


Memory channels

Dual-channel



Certificates


Waste Electrical and Electronic Equipment (WEEE) compliance

Yes



Other features


Country of origin

China


Introduction year
25


Warranty period

3 year(s)


Introduction month

June



Ports & interfaces


HDMI ports quantity

2


Thunderbolt 4 ports quantity

2


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


Ethernet LAN (RJ-45) ports

1


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

2


HDMI version

2.1


DC-in jack

No


Thunderbolt ports quantity

2



Design


Chassis type

Cube


VESA mounting

Yes


Cooling type

Passive


Product colour

Black


Panel mounting interface
0 x 100 mm


Product type

Mini PC barebone


On/off switch

Yes



Storage


Supported storage drive types

SSD


NVMe

Yes


Storage drive sizes supported

M.2


Number of storage drives supported

2


Storage drive interface

PCI Express


Card reader integrated

No



Weight & dimensions


Package height

94 mm


Package depth

220 mm


Package width
5 mm


Height

37.5 mm


Width
9.6 mm


Depth
5.2 mm



Packaging content


Quick start guide

No


Keyboard included

No


Power cord included

Yes


Drivers included

No


AC adapter included

No


Display included

No


Mouse included

No



Technical details


Not classified as hazardous under GHS

No


PSTI certified

No



Network


Wi-Fi standards

Wi-Fi 6E (802.11ax)


LAN controller

Intel I226-V


Bluetooth

Yes


Top Wi-Fi standard

Wi-Fi 6E (802.11ax)


Wi-Fi

Yes


Near Field Communication (NFC)

No


Ethernet LAN

Yes


WLAN controller model

Intel Wi-Fi 6E AX211


Bluetooth Low Energy (BLE)

Yes


Bluetooth version

5.2



Expansion slots


Number of M?2 (M) slots

2



Software


Windows operating systems supported

Yes


Operating system installed

No


Linux operating systems supported

Yes



Operational conditions


Operating temperature (T-T)

0 - 35 C


Operating relative humidity (H-H)

0 - 85


Storage relative humidity (H-H)

0 - 90


Storage temperature (T-T)

-20 - 60 C



Audio


Built-in speaker(s)

No



Performance


Supported processor frequency (max)

4.8 GHz


Processor socket

BGA 2049


Number of processors supported

1


Commodity Classification Automated Tracking System (CCATS)

740.17B1


Trusted Platform Module (TPM) version

2.0


Motherboard form factor

NUC


Export Control Classification Number (ECCN)

5A992.C



Power


Number of power supply units

1


AC input voltage
0 - 240 V


AC input frequency

50/60 Hz


Power supply type

External AC adapter


Power supply
0 W
