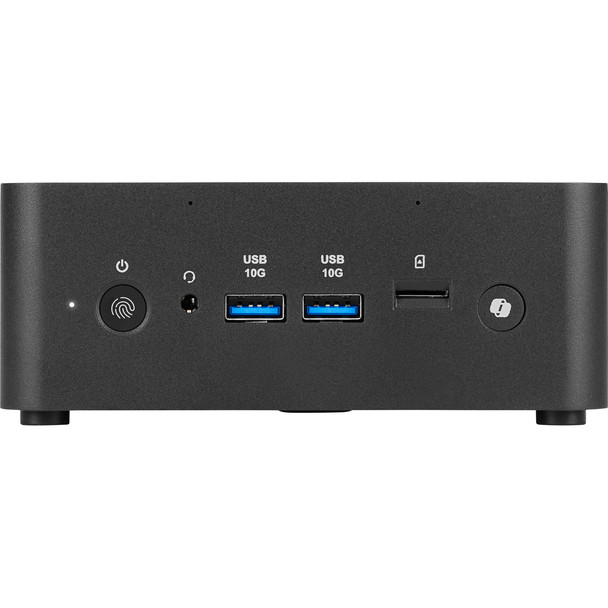

MSI Cubi NUC AI+ 2MG i9 288V FS 32GB 1TB W11PP 3.3 GHz Intel Core Ultra 9 288V 3 CubiNUC AI+ 2MG i9 288V FS 32GB1TB W11PP

MSI Cubi NUC AI+ 2MG i9 288V FS 32GB 1TB W11PP. Processor frequency: 3.3 GHz, Processor family: Intel Core Ultra 9, Processor model: 288V. Internal memory: 32 GB, Internal memory type: LPDDR5-SDRAM, Memory clock speed: 7467 MHz. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black

Processor special features


Video encode engine

Yes


Video decode engine

Yes



Processor


Processor base power

28 W


Processor cache
MB


Performance cores

4


Performance-core Max Turbo Frequency

5.1 GHz


Performance-core base frequency

3.3 GHz


Maximum turbo power

64 W


Efficient cores

4


Processor cache type

Smart Cache


Processor family

Intel Core Ultra 9


Efficient-core Max Turbo Frequency

3.7 GHz


Processor boost frequency

5.1 GHz


Efficient-core base frequency

3.3 GHz


Number of processors installed

1


Processor frequency

3.3 GHz


Processor model

288V


Processor threads

8


Processor manufacturer

Intel


Processor cores

8



Memory


Internal memory type

LPDDR5-SDRAM


Memory clock speed

7467 MHz


Memory slots

1x SO-DIMM


Internal memory

32 GB


Memory layout (slots x size)

1 x 32 GB


ECC

No


Non-ECC

Yes


Maximum internal memory

96 GB


Buffered memory type

Clocked unregistered (unbuffered)


Memory channels

Dual-channel


Memory data transfer rate

7467 MT/s



Certificates


Waste Electrical and Electronic Equipment (WEEE) compliance

Yes


Compliance certificates

CE, Federal Communications Commission (FCC)



Other features


Locale

English


Built-in microphone

No


TV tuner integrated

No


Warranty period

3 year(s)



Ports & interfaces


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

2


PowerShare

Yes


USB Type-C DisplayPort Alternate Mode

Yes


S/PDIF out port

No


Fiber NIC port (Flex I/O)

No


USB 2?0 ports quantity

2


Number of USB ports with PowerShare support

1


Number of front audio ports

1


Headphone outputs

1


Total number of SATA connectors

2


Number of rear USB ports

2


Thunderbolt 4 ports quantity

2


Intel Thunderbolt 5

No


HDMI ports quantity

1


Microphone in

Yes


Intel Thunderbolt 4

Yes


Line-out

No


Ethernet LAN (RJ-45) ports

1


DVI port

No


HDMI version

2.1


DC-in jack

No


Combo headphone/mic port

Yes


Line-in

No


Number of front USB ports

2


Number of rear audio ports

1



Graphics


Ray tracing acceleration

Yes


Graphics card DisplayPorts quantity

1


On-board graphics card family

Intel Arc Graphics


Number of external displays supported

4


Graphics card HDMI ports quantity

1


On-board graphics card 8K support

Yes


On-board GPU manufacturer

Intel


Discrete graphics card

No


Graphics card Open GL support

Yes


CUDA

No


AMD FreeSync

Yes


On-board graphics card

Yes


NVIDIA G-SYNC

No


On-board graphics card 6K support

Yes


NVIDIA GameWorks VR

No


On-board graphics card model

Intel Arc Graphics


On-board graphics card cores

8



Design


Cable lock slot

No


Placement supported

Horizontal/Vertical


Product colour

Black


Viewing window

No


Refurbished

No


Chassis type

Mini PC


Number of 3?5" bays

1


Cable lock slot type

Kensington


RGB memory lighting

No


VESA mounting

Yes


Colour name

Black


Country of origin

China


Number of 2?5" bays

1


Certified refurbished

No


Water cooling system

No


Copilot key

No


Housing material

Metal, Plastic



Storage


Storage media

SSD


M?2 SSD size

2280 (22 x 80 mm)


NVMe

Yes


Card reader integrated

No


Total HDDs capacity

0 GB


Total SSDs capacity

1 TB


SSD interface

PCI Express


Optical drive type

No


SSD capacity

1 TB


SSD form factor

M.2


Number of storage drives supported

1


SSD memory type

TLC


Number of storage drives installed

1


Intel Optane Memory module installed

No


Total storage capacity

1 TB


Number of SSDs installed

1



Weight & dimensions


Package height

94 mm


Package depth

220 mm


Package width
5 mm


Package weight

1.38 kg


Height

50.1 mm


Width
5.6 mm


Depth
2.5 mm


Weight

630 g



Packaging content


Cables included

AC


Numeric keypad

No


VESA mount included

Yes


Keyboard included

No


Manual

Yes


Mouse included

No


Keyboard backlit

No


Screws included

Yes



Neural processor unit (NPU)


Windows Studio effects support

Yes


GPU performance up to

24 TOPs


Neural processor unit (NPU)

Intel AI Boost


AI software frameworks supported by NPU

ONNX RT, OpenVINO


Sparsity support

Yes


Total processor performance up to

34 TOPs


Maximum frequency NPU

1.4 GHz


AI datatype support on NPU

FP16, Int8


NPU performance up to
TOPs



Technical details


Not classified as hazardous under GHS

Yes


Statement of conformance & platform certificate included

Yes



Network


Antenna type

2x2


Bluetooth

Yes


Wi-Fi

Yes


Top Wi-Fi standard

Wi-Fi 6E (802.11ax)


WLAN controller manufacturer

Intel


Ethernet LAN

Yes


Bluetooth Low Energy (BLE)

Yes


Wake-on-LAN ready

Yes


LAN controller

Intel I226-V


Wi-Fi standards

Wi-Fi 6E (802.11ax)


WLAN controller model

Intel Wi-Fi 6E AX211


Cabling technology
/100/1000Base-T(X)


Miracast

Yes


Bluetooth version

5.3


Ethernet LAN data rates

2500 Mbit/s



Expansion slots


PCI Express x16 (Gen 3?x) slots

1


PCI Express x1 slots

1


PCI Express x1 (Gen 3?x) slots

1


PCI Express x16 slots

1



Software


Windows 11 free upgrade

No


Operating system architecture

64-bit


Copilot+ PC

No


Operating system installed

Windows 11 Pro


Drivers included

Yes


Operating system language

English


Apple Intelligence

No



Operational conditions


Operating temperature (T-T)

0 - 40 C


Operating relative humidity (H-H)
- 90


Storage temperature (T-T)

-20 - 60 C



Performance


Product type

Mini PC


Trusted Platform Module (TPM)

Yes


BIOS type

UEFI


Virtual Reality (VR) ready

No


Trusted Platform Module (TPM) version

2.0


Audio output channels

2.0 channels


Audio system

High Definition Audio


Password protection

Yes


Powered by

MSI


Fingerprint reader

No


Built-in speaker(s)

Yes


Password protection type

BIOS


Audio chip

Realtek ALC256


Number of speakers

2


Market positioning

Business



Power


Power supply input frequency

50 - 60 Hz


Power supply input voltage
0 - 240 V


Power supply
0 W



Display


Display included

No
