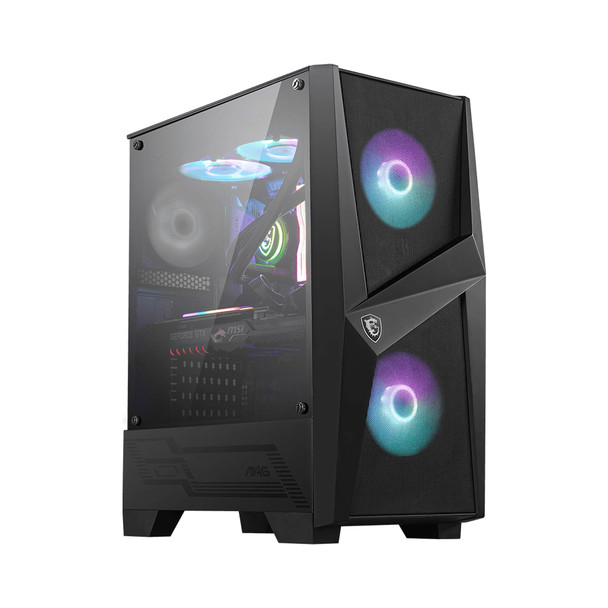

MSI Mag forge 100R Mid Tower Gaming Computer Case MAG FORGE 100R

OPTIMIZED AIR FLOW
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.

READY FOR OPTIMIZED MOTHERBOARD
Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.

TOOL-LESS TEMPERED GLASS
The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.

The Forge 100 Series' thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.

PERSONALIZE YOUR GAMING RIG
ustomizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build.

1 to 6 ARGB LED Control Board
User can intuitively control & switch 9 lighting effects through the LED switch button.

LED Switch Button
Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.

Features


MSI MAG Forge 100R chassis can support up to ATX motherboard, side panel of 4mm tempered glass, up to 140 mm RGB fan, reserved cooling space and front USB 3.2 Gen 1 Type A


Optimize Airflow


ARGB Fan included


4mm Tempered Glass


330 mm Radiator Support


160 mm CPU Cooler Support



Design


Product colour

Black, Transparent


Material

Tempered glass


Maximum CPU cooler height

16 cm


Number of expansion slots

7


On/off button

Yes


Suitable for

Gaming


LED indicators

Yes


Maximum PSU length

20 cm


Number of 3?5" bays

2


Type

PC


Number of internal 3?5" bays

2


Supported motherboard form factors

ATX, micro ATX, Mini-ITX


Side window

Yes


Reset button

Yes


Number of 2?5" bays

3


Illumination colour

Multi


Illumination

Yes


Maximum graphics card length

33 cm


Illumination location

Case fans


Tempered glass panel(s)

Yes


Form factor

Midi Tower


Anti-dust filter

Yes



Cooling


Front fans supported description

addressable RGB LED


Front fans installed

2x 120 mm


Front fans diameters supported

120,140 mm


Rear fans installed

1x 120 mm


Number of rear fans supported (max)

1


Number of front fans supported (max)

3


Number of top fans supported (max)

2


Top fans diameters supported

120,140 mm


Rear fans diameters supported

120 mm



Storage


HDD/SSD combo cage

Yes


Supported HDD sizes

2.5,3.5"



Weight & dimensions


Height

499 mm


Width

210 mm


Depth

421 mm


Weight

5.64 kg



Logistics data


Harmonized System (HS) code

84733080



Power supply


Power supply included

No


Power supply location

Bottom



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

2


Audio input

Yes


Audio output

Yes
