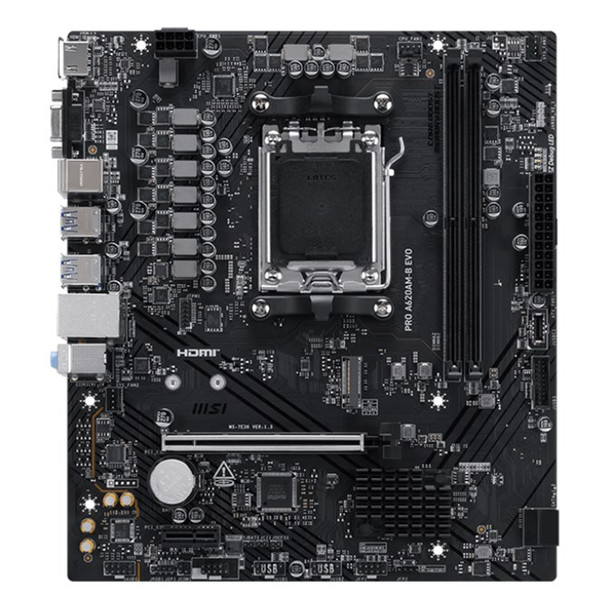

MSI PRO A620AM-B EVO AMD A620A Socket AM5 ATX PRO A620AM-B EVO

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

A larger BIOS ROM capacity allows users to enjoy the most complete and feature-rich BIOS interface when using their CPU. Even when upgrading to the latest AM5 CPUs in the future, full compatibility will still be ensured.

LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.

EASY OVERCLOCKING WITH EXPO PROFILE
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.

MSI BIOS has introduced the latest Latency Killer feature on all AM5 socket motherboards. Users can enable Latency Killer in the BIOS to reduce memory latency by up to 12% when running at high frequencies. Importantly, it is compatible with a wide range of memory overclocking features, including Memory Try It!!, EXPO, A-XMP, and High-Efficiency Mode, etc.

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Exclusive UI of AIDA64 Extreme
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

EXPO(EXTENDED PROFILES FOR OVERCLOCKING)
Choose from a preset EXPO profile and automatically overclock compatible DDR memory.

M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.

SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

System Safety
All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

Specs




Processor


Processor manufacturer

The manufacturer that produced the processor.

AMD


Processor socket

Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.

Socket AM5


Compatible processor series

A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'.

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series


Supported processor sockets

The sockets (plugs) for processors that are supported (can be used) by the device.

Socket AM5


Memory


Supported memory types

Types of memory which can be used with the product.

DDR5-SDRAM


Number of memory slots

2


Memory slots type

A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.

DIMM


Memory channels

Dual-channel


ECC ?ompatibility

Non-ECC


Maximum internal memory

The maximum internal memory which is available in the product.
8 GB


Unbuffered memory




Storage controllers


Supported storage drive interfaces

M.2, SATA III


RAID support

The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.




Graphics


On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




Internal I/O


USB 2.0 connectors

The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), in addition to the "USB 1.x Full Speed" signaling rate of 12 Mbit/s. USB 2.0 connectors are usually colored black.

4


USB 3.2 Gen 1 (3.1 Gen 1) connectors

This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008, USB 3.0 adds a new transfer mode called "SuperSpeed," (distinguishable from USB 2.0 by either the blue colour of the port or the initials SS) capable of transferring data at up to 5Gbit/s-more than ten times as fast as the 480 Mbit/s top speed of USB 2.0.

3


Number of SATA III connectors

Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.

2


ATX Power connector (24-pin)




Rear panel I/O ports


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

6


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1



Rear panel I/O ports


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


VGA (D-Sub) ports quantity

Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.

1


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet interface type

5 Gigabit Ethernet


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Features


Motherboard chipset

The chipset connects the microprocessor to the rest of the motherboard.

AMD A620A


Audio output channels

An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1 channels


Product colour

The colour e.g. red, blue, green, black, white.

Black


Component for

What this product is used as a part of (component for).

PC


Motherboard form factor

Design of the motherboard (ATX, BTX etc).

ATX


Motherboard chipset family

The category of motherboard chipset e.g. Intel, AMD.

AMD


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 11


Expansion slots


PCI Express x1 (Gen 3.x) slots

1


PCI Express x16 (Gen 5.x) slots

1


Number of M.2 (M) slots

4


Weight & dimensions


Width

The measurement or extent of something from side to side.

218 mm


Depth

The distance from the front to the back of something.

243.8 mm
