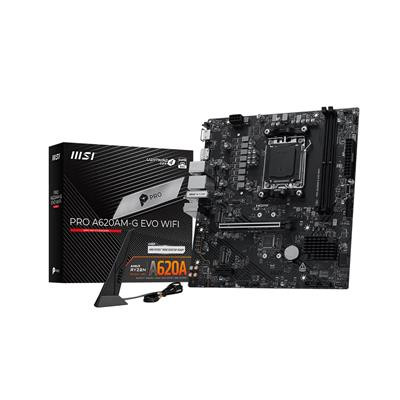

Msi PRO A620AM-G EVO WIFI Socket Am5/A620a/Ddr5/S-Ata 6Gb/S/Micro Atx PRO A620AM-G EVO WIFI

Product Group:

Motherboards



Manufacturer:

MSI



SKU:
8019


Product Specifications



Product Name:

MSI PRO A620AM-G EVO WIFI (Socket AM5/A620A/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

uk.msi



Model Number:

PRO A620AM-G EVO WIFI



EAN:

4711377417501



Package Type:

Retail



Warranty:

3 Years



Chipset:

AMD A620A



CPU Interface:

Socket AM5



CPU Support:

https://www.msi/Motherboard/PRO-A620AM-G-EVO-WIFI/support#cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

2 x 288-pin



RAM Speeds:

Up to DDR5 7200+ (O.C.)



Max. Memory Support:
8GB



PCI Express 4.0 x16:

1



PCI Express 3.0 x1:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/10



M.2 Socket(s):

2 x PCIe Gen 4.0 x4



LAN Speed:

Realtek RTL8125D 2.5G LAN



Wireless NIC:

Wi-Fi 6E



Wireless Technology:


The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/b/g/n/ac/ax




Bluetooth:

v5.3



On-Board Audio:

Realtek ALC897 Codec



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

2



Back USB 5Gbps Port(s) Type-A:

4



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

Wi-Fi / Bluetooth



Back Button(s):


1 x Clear CMOS
1 x Flash BIOS




24-pin ATX Power:

1



8-pin ATX Power:

1



USB 2.0 Header(s):

2



USB 5Gbps Header(s):

2



COM Port Header(s):

1



Front Panel Audio Connector:

1



TPM Header(s):

1



Internal Other Port(s):


3 x Addressable V2 RGB LED connector
1 x RGB LED connector




Form Factor:

Micro ATX



Product Width:

226mm



Product Length:

243.84mm



Package Width:

25cm



Package Length:

28cm



Package Height:

6cm



Net Weight:

0.77Kg



Gross Weight:

0.90Kg



Special Features:


Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors.
Supports DDR5 Memory, Dual Channel DDR5 7200+ MT/s (OC).
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Lightning-Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2.
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
2.5G LAN with Wi-Fi 6E Solution: the remarkable solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.




Package Contents:


Motherboard
Quick Installation Guide
EZ M.2 Clip II Remover
2 x EZ M.2 Clip II
EZ Wi-Fi Antenna
SATA Cable
IO Shield
