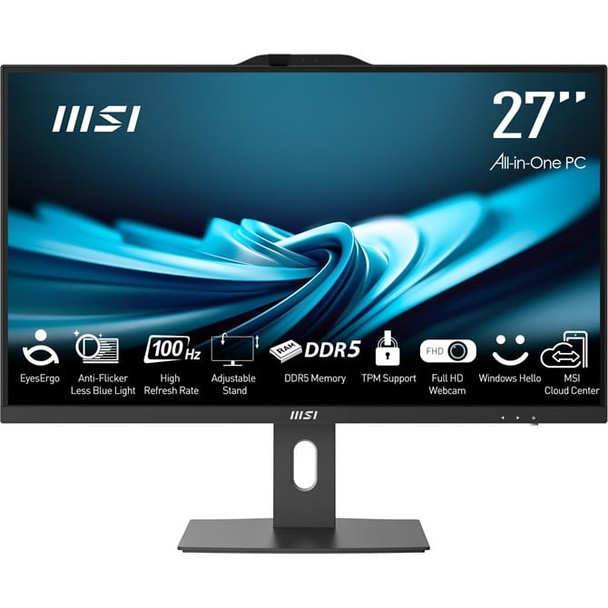

MSI Pro AP272P 14M Intel Core I7 14700 All in One PC 16GB RAM 1TB SSD Windows 11 PRO AP272P 14M I7 14700 16GB 1TB W11P

PRO AP272P 14M Series: All-in-One Monitor PC

Combining 100Hz IPS-grade screen display and robust hardware, the PRO AP272P 14M is the latest All-in-One Desktop PC Solution and has a broad range of connectivity options and integrated Webcam.

Designed for office professionals who spend long hours in front of computer screens, the 27- FHD screen (1920x1080 with 100Hz IPS-grade panel) features anti-glare screen to help minimize eye fatigue. The monitor includes built-in speakers and anti-flicker & less blue light technologies.

The PRO AP272P 14M i7 14700 16GB 1TB W11P is equipped with an 14 gen Intel Core i7 14700 processor, 16 GB of DDR5 RAM memory, and 1TB of Gen3 SSD storage. The system includes Windows 11 Pro operating system.

MIL-STD-1916 testing guarantees MSI products meet high-performance standards, providing reliable and professional experiences with desktop PCs at their best.

MIL-STD-1916 testing ensures MSI products meet high performance standards, providing a reliable gaming experience with desktops at their best.

MIL-STD-1916 testing ensures every component meets strict durability standards, making MSI products capable of lasting through extended gaming and work sessions while delivering reliable performance.

We employ automation and advanced technology to achieve the highest level of precision. This technology-driven approach allows us to create and test products with unparalleled accuracy.

In the world of business, reliability and dependability are crucial. MSI products go through rigorous testing and quality checks to minimize the chances of failure, ensuring an uninterrupted workflow.

Specs




Display


Display diagonal

Size of the display for this product, measured diagonally, usually in inches.

68.6 cm (27")


Display resolution

The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width - height, with the units in pixels: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
20 x 1080 pixels


Touchscreen

A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.




HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

Full HD


Display brightness

Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.

250 cd/m-


Panel type

IPS


Pixel pitch

This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.

0.2745 x 0.2745 mm


Anti-glare screen

Always gives an optimal view, even in direct sunlight.




Tilt adjustment

The tilt, which means the angle at which the device is pointing (up or down), can be changed.




Tilt angle range

-4 - 20-


Processor


Processor manufacturer

The manufacturer that produced the processor.

Intel


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Intel- Core- i7


Processor generation

Intel- Core- i7 (14th gen)


Processor model

The model number for the processor in a computer.

i7-14700


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).



Processor threads

28


Processor boost frequency

The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5.4 GHz


Processor frequency

The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

2.1 GHz


Performance cores

8


Efficient cores



Performance-core Max Turbo Frequency

5.4 GHz


Efficient-core Max Turbo Frequency

4.2 GHz


Performance-core base frequency

2.1 GHz


Efficient-core base frequency

1.5 GHz


Processor cache

33 MB


Processor cache type

Smart Cache


Processor base power

65 W


Maximum turbo power

219 W


Memory


Internal memory

A computer's memory which is directly accessible to the CPU.
GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM


Maximum internal memory

The maximum internal memory which is available in the product.

64 GB


Memory slots

Number and type of memory expansion slots, including connector and memory module descriptions.

2


Memory slots type

A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.

SO-DIMM


Memory clock speed

The frequency at which the memory (e.g. RAM) runs.

2800 MHz


Memory layout (slots x size)

The slots and size of the memory for the CPU.

2 x 8 GB


Memory form factor

Design of the memory e.g. 240-pin DIMM, SO-DIMM.

DIMM/SO-DIMM


Storage


Total storage capacity

The total amount of data that can be stored on the device.

1 TB


Storage media

Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD


Number of storage drives installed

Amount of storage drives built into the device.

1


Total SSDs capacity

1 TB


Number of SSDs installed

1


SSD capacity

The Solid State Drive's data storage capacity.

1 TB


SSD interface

The type of interface(s) with which the Solid State Drive is connected to other hardware.

M.2


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




SSD form factor

The size of the solid-state drive, given in inches

M.2


M.2 SSD size

2280 (22 x 80 mm)


Optical drive type

An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.




Graphics


Discrete graphics card




Discrete graphics card model

A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.

Not available


On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




On-board GPU manufacturer

Intel


On-board graphics card family

Intel- UHD Graphics


On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel UHD Graphics 770


Audio


Built-in speaker(s)

The device contains speaker(s) to produce sound.




Number of speakers

The quantity of speakers included in/with the product.

2


RMS rated power

RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

3 W


Built-in microphone

Microphone that is found inside the product.




Audio chip

Realtek ALC897


Audio system

System used to play music or speech.

HD


Camera


Built-in camera

The product has an integrated camera.




Total megapixels

A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 - 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 - 1536 = 3,145,728 finished image pixels).

2 MP


Camera HD type

Full HD


Privacy camera




Network


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.





Network


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6E (802.11ax)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 6E (802.11ax)


WLAN controller manufacturer

Intel


WLAN controller model

Intel Wi-Fi 6E AX211


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
00 Mbit/s


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Bluetooth version

The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.3


Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

2


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1


Headphone outputs

Number of sockets /ports where headphones are connected.

1


Microphone in

The socket where a microphone is connected to the device.




DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Number of rear USB ports

4


Number of side USB ports

2


Number of side audio ports

2


Design


Housing material

What the casing of the product is made of.

Plastic


Colour name

BLACK


Frameless design




Product colour

The colour e.g. red, blue, green, black, white.

Black


Height adjustment

The part of the device that can be adjusted to change the height.




Pivot




Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Wall mountable

The product can be mounted on (attached to ) a wall.




VESA mounting




Panel mounting interface

The product can be used wih VESA mounting interfaces.

75 x 75 mm


Introduction year
24


Cable management

Description of improved cable management




On/off button




Country of origin

Country where the device is made. Aka Country of manufacture (COM).

China


Performance


Product type

The sub-category of the product.

All-in-One PC


Market positioning

Under which category can the device be positioned in the market, e.g. camera phone.

Business


Cooling type

The method used to cool the device or to cool the air around the device.

Active


Motherboard chipset

The chipset connects the microprocessor to the rest of the motherboard.

Intel H610


Trusted Platform Module (TPM)




Trusted Platform Module (TPM) version

2.0


Software


Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro


Power


AC adapter power
0 W


Weight & dimensions


Width (with stand)

613.5 mm


Depth (with stand)

268 mm


Height (with stand)

457.7 mm


Weight (with stand)

4.63 kg


Package width

The distance from one side of the packaging to the other.

711 mm


Package depth

The distance from the front to the back of the packaging.

232 mm


Package height

The distance from the top to the bottom of the packaging.

514 mm


Package weight

Weight of the packaged product.

8 kg


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 35 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 -C


Operating relative humidity (H-H)

0 - 85%


Storage relative humidity (H-H)

0 - 90%


Certificates


Compliance certificates

BSMI, CB, CE, Federal Communications Commission (FCC), UKCA, UL, cUL


Packaging content


Mouse included

A mouse is included with this product.




Keyboard included

A keyboard is part of the bundle/set.




Cables included

AC


Other features


Warranty period

3 year(s)
