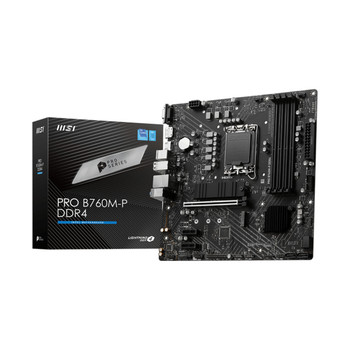

MSI PRO B760M-P Intel LGA 1700 Intel� Celeron� Intel� Pentium� Gold LGA 1700 DDR PRO B760M-P

PRO B760M-P is designed with tons of flexible tools with DDR5 memory version.

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.


Diy Friendly

Cooling Overview
msi PRO B760M-P cooling overview mobile

M.2 Shield Frozr

Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

REINFORCED, HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Diy Friendly

Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.

Bios & software

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Features


Supports 12th/13th Gen Intel� Core�, Pentium� Gold and Celeron� processors for LGA 1700 socket


Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)


Core Boost : With premium layout and digital power design to support more cores and provide better performance


Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility


Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr


AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience


Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength



Processor


Processor socket

LGA 1700


Compatible processor series

Intel� Celeron�, Intel� Pentium� Gold


Supported processor sockets

LGA 1700


Processor manufacturer

Intel



Weight & dimensions


Width

243.8 mm


Depth

243.8 mm



BIOS


ACPI version

6.4


System Management BIOS (SMBIOS) version

3.5


BIOS type

UEFI AMI


BIOS memory size

256 Mbit


Clear CMOS jumper

Yes



Packaging content


Cables included

SATA



Storage controllers


Supported storage drive types

HDD & SSD


Number of storage drives supported

6


RAID support

Yes


RAID levels

0, 1, 5, 10


Supported storage drive interfaces

SATA III


Number of HDDs supported

4



Memory


Supported memory types

DDR5-SDRAM


Unbuffered memory

Yes


Non-ECC

Yes


Number of memory slots

4


Maximum internal memory

192 GB


Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz



Network


LAN controller

Realtek RTL8111H


Wi-Fi

No


Ethernet LAN

Yes


Ethernet interface type

Gigabit Ethernet



Expansion slots


PCI Express x16 (Gen 4?x) slots

1


PCI Express x1 (Gen 4?x) slots

2



Rear panel I/O ports


DisplayPort version

1.4


Headphone outputs

1


DisplayPorts quantity

1


HDMI ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

1


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


Microphone in

Yes


VGA (D-Sub) ports quantity

1


Ethernet LAN (RJ-45) ports

1


HDMI version

1.4


Line-in

Yes


PS/2 ports quantity

2


USB 2?0 ports quantity

4



Internal I/O


Front panel audio connector

Yes


USB 2?0 connectors

4


USB 3?2 Gen 1 (3?1 Gen 1) connectors

2


ATX Power connector (24-pin)

Yes


CPU fan connector

Yes


Chassis intrusion connector

Yes


Number of COM connectors

1


Parallel connector

Yes


Number of SATA III connectors

4


Front panel connector

Yes


TPM connector

Yes


RGB LED pin header

Yes



Features


Motherboard chipset

Intel B760


Windows operating systems supported

Windows 10 x64, Windows 11 x64


Motherboard chipset family

Intel


Power source type

ATX


Component for

PC


Audio chip

Realtek ALC897


Audio output channels

7.1 channels


Motherboard form factor

micro ATX
