MSI PRO DP21 14M Intel Core 5 14400 Barebone DP21 14M SFF Mini Computer HTPC NO PRO DP21 14M i5 14400 BB

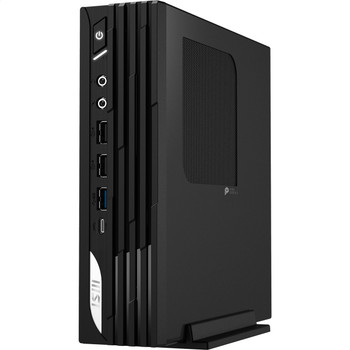

MSI PRO DP21 14M Mini PC (SFF):
The MSI PRO DP21 14M is a small yet powerful mini-desktop with a compact 2.3L design suitable for commercial office work.

The PRO DP21 14M i5 14400 BB is a complete system equipped with an Intel 14th Gen Core i5-14400 processor with 10-core / 16-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo), Intel Wi-Fi 6E & Bluetooth 5.3 connectivity. Windows 11 Pro software is pre-installed.

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2 x 2.5-inch SSD/HDD storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMMs), and is VESA-mountable for a cleaner desktop.

Front & rear I/O include Intel 1Gbps ethernet LAN RJ45, Mic-in, Headphones-out, 8 x USB (10Gbps Type-A & C, 5Gbps Type-A & C, 2.0 Type-A), and HDMI 2.1 & DP 1.4 ports. The PRO DP21 14M also contains a COM port for connecting to POS devices. dTrusted Platform Module 2.0 (dTPM2.0) technology provides security for storing sensitive information.

Features


INTEL 14TH GEN CORE i5 PC - DP21 14M is a compact (2.3L) mini PC featuring an Intel 14th Gen. Core i5-14400 processor with 10-core / 16-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo); Windows 11 Pro software pre-installed


UHD GRAPHICS - supports 4K display at up to 60Hz - ideal for watching hi-res movies; The rear I/O includes HDMI 2.0 & DP 1.4 ports for dual monitor setups


VESA MOUNTABLE - supports up to 2 x 2.5" HDD/SSD & 1 x M.2 with auto switch


The dTPM2.0 (Trusted Platform Module 2.0) technology provides security for storing sensitive data & passwords. A server-grade thermal module distributes the cooling of different components within the system


MSI Power Meter & MSI AI Engine - Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation



Processor special features


Intel Platform Trust Technology (Intel PTT)

Yes


Intel Smart Connect Technology

No


Intel Optane Memory Ready

Yes


Intel Turbo Boost Technology

Yes


Thermal Monitoring Technologies

Yes


Intel Rapid Storage Technology

Yes


Intel FDI Technology

No


Intel Flex Memory Access

Yes


Intel Unite installed

No


Intel Matrix Storage Technology (Intel MST)

No


Intel High Definition Audio (Intel HD Audio)

Yes


Intel Smart Response Technology

No


Conflict-Free

Yes


Intel vPro Platform Eligibility

No


Execute Disable Bit

Yes


Intel Stable Image Platform Program (SIPP)

No


Intel Smart Cache

Yes


Intel Virtualization Technology (VT-x)

Yes


Intel Wireless Display (Intel WiDi)

No


Intel Secure Key

Yes


Intel 64

Yes


Intel Clear Video HD Technology (Intel CVT HD)

Yes


Intel Anti-Theft Technology (Intel AT)

No


Enhanced Intel SpeedStep Technology

Yes


Intel Trusted Execution Technology

No


Intel Visual BIOS

No


Intel Dual Display Capable Technology

Yes


Intel Fast Memory Access

No


Embedded options available

No


Intel Demand Based Switching

No


Intel Rapid Start Technology

No


Idle States

Yes


Intel OS Guard

Yes


Intel Insider

No


Intel On-Demand Power Redundancy Technology

No


Intel InTru 3D Technology

No


Intel My WiFi Technology (Intel MWT)

No


Intel Identity Protection Technology (Intel IPT)

Yes


Intel Small Business Advantage (Intel SBA)

No


Intel Advanced Management Technology

No


Intel Unite

No


Intel Clear Video Technology

Yes


Intel Virtualization Technology for Directed I/O (VT-d)

Yes


Intel Express BIOS update

No


Intel TSX-NI

No


Intel AES New Instructions (Intel AES-NI)

Yes


Intel VT-x with Extended Page Tables (EPT)

Yes


Intel Quick Sync Video Technology

Yes


Intel Hyper Threading Technology (Intel HT Technology)

Yes


Intel Virtualization Technology (Intel VT)

Yes



Processor


Processor lithography
nm


L2 cache

9.5 MB


Processor cache
MB


Thermal Design Power (TDP)

65 W


Performance cores

6


Performance-core Max Turbo Frequency

4.7 GHz


Performance-core base frequency

2.5 GHz


Efficient cores

4


Processor family

Intel Core i5


Efficient-core Max Turbo Frequency

3.5 GHz


Processor boost frequency

4.7 GHz


ECC supported by processor

Yes


Efficient-core base frequency

1.8 GHz


L3 cache
MB


Built-in processor

Yes


Processor frequency

2.5 GHz


Processor threads



Processor manufacturer

Intel


Processor cores




Memory


ECC

No


Non-ECC

Yes


Maximum internal memory

64 GB


Supported memory clock speeds

5600 MHz


Memory channels

Dual-channel



Certificates


Waste Electrical and Electronic Equipment (WEEE) compliance

Yes



Other features


Country of origin

China


Introduction year
25


Warranty period

3 year(s)


Introduction month

June



Ports & interfaces


Internal USB 2?0 ports quantity

4


DisplayPort version

1.4


Headphone outputs

1


DisplayPorts quantity

1


TV-out

No


USB 3?2 Gen 1 (3?1 Gen 1) Type-C ports quantity

1


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

1


Serial port via internal header

No


HDMI ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

1


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


Microphone in

Yes


Internal USB 3?2 Gen 1 (3?1 Gen 1) ports quantity

2


USB charging

Yes


Ethernet LAN (RJ-45) ports

1


S/PDIF out port

No


Consumer infrared headers

No


HDMI version

2.1


DVI port

No


DC-in jack

No


Combo headphone/mic port

No


USB 2?0 ports quantity

4



Graphics


Maximum resolution

4096 x 2160 pixels


On-board graphics card

Yes


On-board graphics card model

Intel UHD Graphics 770


Graphics card family

Intel


Number of displays supported

3



Design


Chassis type

Mini-Tower


Cable lock slot type

Kensington


Cable lock slot

Yes


Cooling type

Active


Product colour

Black


Product type

Mini PC barebone


Housing material

Metal, Plastic


On/off switch

Yes


LED indicators

Yes



Storage


Card reader integrated

No



Weight & dimensions


Package height
2 mm


Package depth

382 mm


Package width

271 mm


Package weight

2.8 kg


Height

54.8 mm


Width
4 mm


Depth

280 mm


Weight

1.27 kg



Packaging content


Quick start guide

Yes


Keyboard included

No


Power cord included

Yes


Drivers included

Yes


AC adapter included

Yes


Display included

No


Mouse included

No



Technical details


Compliance certificates

BSMI, CB, CE, Federal Communications Commission (FCC)



Network


Wi-Fi standards

Wi-Fi 6E (802.11ax)


Copper ethernet cabling technology
BASE-TX, 100BASE-TX, 1000BASE-TX


LAN controller

Realtek RTL8111H


Bluetooth

Yes


Top Wi-Fi standard

Wi-Fi 6E (802.11ax)


Wi-Fi

Yes


Near Field Communication (NFC)

No


Ethernet LAN

Yes


WLAN controller model

Intel Wi-Fi 6E AX211


Bluetooth Low Energy (BLE)

Yes


Bluetooth version

5.3



Expansion slots


PCI Express x1 slots

1


PCI Express slots version

4.0


PCI Express x16 slots

1


Number of M?2 (M) slots

2



Software


Windows operating systems supported

No



Operational conditions


Operating temperature (T-T)

0 - 40 C


Operating relative humidity (H-H)
- 90


Storage temperature (T-T)

-20 - 60 C



Audio


Built-in speaker(s)

No



Performance


Motherboard chipset

Intel H610


Consumer infrared Rx sensor

No


Compatible processor series

Intel Core i5 14th Gen


Number of processors supported

1


Trusted Platform Module (TPM)

Yes


BIOS type

UEFI


BIOS memory size

256 Mbit


Trusted Platform Module (TPM) version

2.0


Motherboard form factor

micro ATX


Audio output channels

7.1 channels


Supported processor frequency (max)

4.7 GHz


Processor socket

LGA 1700


ACPI version

6.3


Audio chip

Realtek ALC897



Power


Number of power supply units

1


AC input voltage
0 - 240 V


AC input frequency

50/60 Hz


Power supply type

External AC adapter


Power supply
0 W



Display


Touchscreen

No
