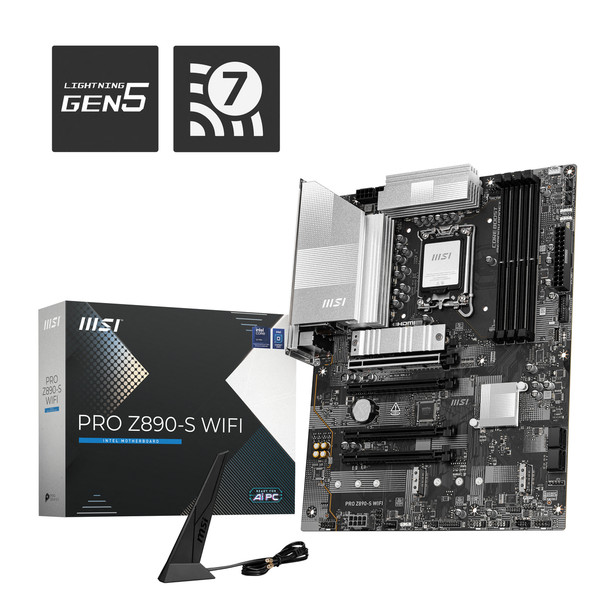

MSI PRO Z890-S WIFI Intel LGA 1851 Socket V1 Intel Core Ultra Series 2 LGA 1851 PRO Z890-S WIFI

PRO Z890-S WIFI
PRO Z890-S WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel Core Ultra processors.

BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

One Finger for EZ GPU Installation
The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.
+1+1+1 DRPS POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+1+1+1 digital power phases. With dual power connectors, PRO Z890-S WIFI is ready for the challenge of high-end processors.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Features


Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket


Supports DDR5 Memory, Dual Channel DDR5 8600+ MT/s (OC)


Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB


Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience


EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna


Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2


Thunderbolt 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant


2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking


Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience



Processor


Processor socket

LGA 1851 (Socket V1)


Compatible processor series

Intel Core Ultra (Series 2)


Supported processor sockets

LGA 1851


Maximum internal memory supported by processor

256 GB


Processor manufacturer

Intel



Weight & dimensions


Width

243.8 mm


Depth

304.8 mm



Storage controllers


Supported storage drive types

HDD & SSD


Number of storage drives supported

4


RAID support

Yes


RAID levels

0, 1, 5, 10


Supported storage drive interfaces

M.2, SATA III


Number of HDDs supported

7



Memory


Supported memory types

DDR5-SDRAM


ECC ompatibility

Non-ECC


Supported memory clock speed (max)

8600 MHz


Number of memory slots

4


Maximum internal memory

256 GB


Memory slots type

DIMM


Supported memory clock speeds

4800,6400,8600 MHz


Memory channels

Dual-channel



Network


Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)


Bluetooth

Yes


Wi-Fi

Yes


Top Wi-Fi standard

Wi-Fi 7 (802.11be)


Ethernet LAN

Yes


Ethernet interface type

2.5 Gigabit Ethernet


Bluetooth version

5.4



Expansion slots


PCI Express x16 slots

4


Number of M?2 (M) slots

3



Rear panel I/O ports


HDMI ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

6


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


DisplayPort version

1.4


DisplayPorts quantity

1


Ethernet LAN (RJ-45) ports

1


HDMI version

2.1


Thunderbolt ports quantity

1



Internal I/O


USB 2?0 connectors

4


USB 3?2 Gen 1 (3?1 Gen 1) connectors

2


Total number of SATA connectors

4


Number of SATA III connectors

4


USB 3?2 Gen 2 (3?1 Gen 2) connectors

1



Features


Motherboard chipset

Intel Z890


PC health monitoring

Fan, Temperature, Voltage


Windows operating systems supported

Windows 11 x64


Product colour

Black


Motherboard chipset family

Intel


Component for

PC


Audio chip

Realtek ALC897


Audio output channels

7.1 channels


Motherboard form factor

ATX
