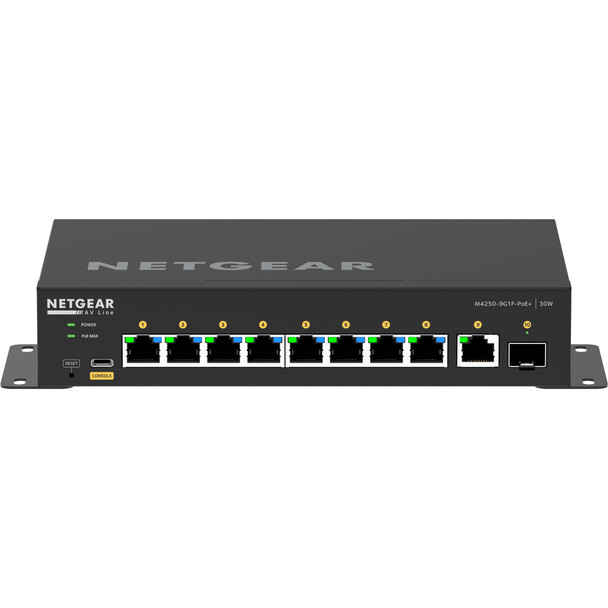

Netgear 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch 8 Port L2/L3 Managed POE Ne GSM4210PD-100EUS

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE

Pre-configured to get you up and running faster

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus�, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Data transmission


MAC address table

16000 entries


Store-and-forward

Yes


Switching capacity

24 Gbit/s



Power over Ethernet (PoE)


Power over Ethernet plus (PoE+) ports quantity

8


Total Power over Ethernet (PoE) budget

110 W


Power over Ethernet (PoE)

Yes


Power over Ethernet (PoE) power per port

30 W



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

8



Security


DHCP features

DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping


Access Control List (ACL)

Yes


SSH/SSL support

Yes


Authentication

MAC-based authentication


IGMP snooping

Yes


Loop protection

Yes


Authentication type

RADIUS


BPDU filtering/protection

Yes



Management features


Switch layer

L2/L3


Quality of Service (QoS) support

Yes


Switch type

Managed



Multicast features


IPv4 multicast entries

2000


Multicast support

Yes



Design


Product colour

Black


Rack mounting

Yes


LED indicators

PoE, Power, Status



Weight & dimensions


Height

40 mm


Width

210 mm


Depth

140 mm


Weight

967 g



Network


Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x


Broadcast storm control

Yes


Link aggregation

Yes


Spanning tree protocol

Yes


Full duplex

Yes


Rate limiting

Yes



Operational conditions


Operating temperature (T-T)

0 - 50 �C


Heat dissipation

559.555 BTU/h


Operating relative humidity (H-H)

0 - 90


Storage relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-20 - 70 �C


Non-operating altitude

0 - 3000 m


Operating altitude

0 - 3000 m



Performance


Internal memory

2048 MB


Built-in processor

Yes


Processor frequency

1250 MHz


Processor model

ARM Cortex-A9


Noise level

30.06 dB



Power


AC input voltage

220 - 240 V


AC input frequency

50 - 60 Hz


Power supply included

Yes


Power source

AC/DC



Packaging data


Manual

Yes


User guide

Yes
