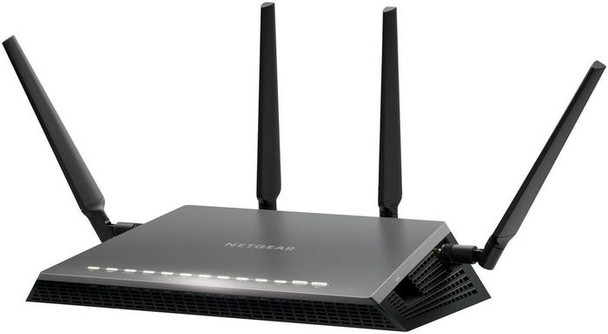

Netgear D7800-100PES AC2600 VDSL/ADSL ModemRtr D7800-100PES

Newest Generation of WiFi

Nighthawk X4S AC2600 WiFi VDSL/ADSL Modem Router with MU-MIMO and Quad Stream technology
delivers WiFi to multiple devices simultaneously for up to 3 times faster speeds. Get ultimate WiFi speeds
of up to 2.53Gbps, with a powerful 1.4GHz dual core processor. Enjoy smoother streaming and gaming by prioritizing application and device with Dynamic QoS.

WIFI VDSL/ADSL Modem Router

- Extreme combined WiFi speed�up to 2.53 Gbps
- Dual Core 1.4GHz processor boosts performance for gaming and streaming
- Two-in-One�DSL Modem + AC2600 WiFi Router
- One device saves space, less wiring, smaller footprint
- Auto Detection for Universal DSL Support
- Gigabit Ethernet WAN port provides universal compatibility with any Internet service
- Compatible with VDSL, VDSL2, ADSL, ADSL2, & ADSL2+
- Works with DSL ISPs like (check with your country�s providers)

Streaming & Gaming

- Multi-user MIMO (MU-MIMO) gives you faster speeds with simultaneously streamed data for up to three devices
- Quad Stream WiFi�Up to four data streams per WiFi band maximizes connection speed
- Dynamic QoS prioritizes Internet traffic by application & device for lag-free gaming & smoother streaming
- Beamforming+ for improved WiFi coverage
- Connect USB 3.0 & eSATA storage devices to store & stream your own media
- Find & play your stored media on TVs and game consoles using the built-in
- DLNA�-ready server

Mobile

- Quad-Stream Wave 2 WiFi increases WiFi range for mobile devices
- Multi-user MIMO (MU-MIMO) for simultaneous streaming to mobile devices
- Beamforming+ boosts speed and range for all WiFi devices
- Powerful amplifiers and four high performance antennas increase WiFi range
- EZ Mobile Connect�Scan a QR code & connect to WiFi securely
- Turbo Transfer allows sharing of files between PC, Mac or Android devices
- Enhanced Parental Controls�Manage website access by family member and device

Speed

Get the fastest WiFi currently available & enjoy a blazing-fast, lag-free WiFi experience for gaming,
video streaming or surfing.

WiFi Range

Got range? Homes come in all shapes and sizes and the Nighthawk X4S AC2600 WiFi VDSL/ADSL
Modem Router provides WiFi coverage no matter where you connect in your home.

Sharing

With NETGEAR, sharing across your network is fun and easy, anything from accessing stored photos
& music to wireless printing. And make sure you keep it safe by using the included ReadySHARE Vault
application for backing up Windows-based PCs.

Antenna



Antenna design



External


Antenna type



External


Antennas quantity



4


Design



LED indicators



Y, Yes


On/off switch



Yes


Product colour



Black


DSL features



ADSL2+



Yes


DSL specification



VDSL, VDSL2, ADSL, ADSL2, ADSL2+


Features



Flash memory



128 MB


Internal memory



512 MB


Processor cores



2


Processor frequency



1400 MHz


Mobile network



3G



No


4G



No


Mobile network generation



4G


Network



Cabling technology



10/100/1000Base-T(X)


Ethernet LAN



Yes


Ethernet LAN data rates



10, 100, 1000


Ethernet LAN interface type



Gigabit Ethernet


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Other features



Bandwidth (first)



2.4 GHz


Bandwidth (second)



5 GHz


Frequency band



2.4 & 5 GHz


Mobile network connection



No


Rack mounting



No


USB ports quantity



2


USB version



3.2 Gen 1 (3.1 Gen 1)


xDSL connection



Yes


Package dimensions



Depth (package,cm)



35.4 cm


Gross Weight (Package, kg)



2.7 kg


Height (package,cm)



8.4 cm


Width (package,cm)



26.2 cm


Packaging content



AC adapter included



Yes


Cables included



LAN (RJ-45)


Quick start guide



Yes


Packaging data



AC adapter included



Yes


Cables included



LAN (RJ-45)


Quick start guide



Yes


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



5


Product dimensions



Net Weight (Product, kg)



1.817 kg


Product Depth



18.5 cm


Product Height



5 cm


Product Width



28.5 cm


Security



DoS attack prevention



Yes


Network address translation (NAT)



Yes


Security algorithms



WPA, WPA2-PSK, WPS


Stateful Packet Inspection (SPI)



Yes


System requirements



Linux operating systems supported



Yes


Mac operating systems supported



Y, Yes


Windows operating systems supported



Y, Yes


Vendor information



Brand Name


Netgear


Warranty



1 Year(s)


WAN connection



Ethernet WAN



Yes


Wireless LAN features



Top Wi-Fi standard



Wi-Fi 5 (802.11ac)


Wi-Fi band



Dual-band (2.4 GHz / 5 GHz)


Wi-Fi standards



802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
