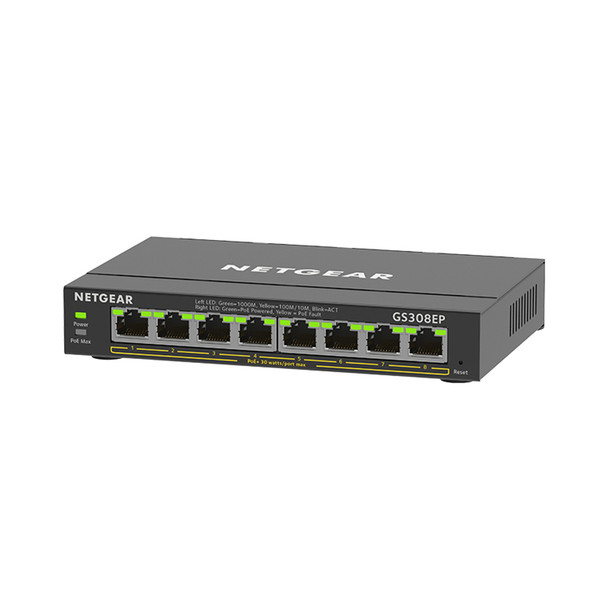

Netgear GS308EP 8 Port L2/L3 Managed POE Network Switch GS308EP-100UKS

300 Series SOHO Plus (GS308EP)

The NETGEAR 8-Port Gigabit Ethernet PoE+ Plus Switch delivers essential business networking features and powers PoE+ devices like VoIP phones, IP cameras, and more.

Gigabit Ethernet
8 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each.

PoE+ Support
8 PoE+ ports provide a total of 62W of power so you can power and connect your devices with a single wire.

Advanced PoE Controls
Manage PoE prioritization, PoE power limit per port, and more for simple control over all PoE-powered devices.

Non-Blocking Switching
10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.

Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.

Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.

Data transmission


Jumbo frames

9216


MAC address table

4000 entries


Jumbo frames support

Yes


Switching capacity

16 Gbit/s



Power over Ethernet (PoE)


Power over Ethernet plus (PoE+) ports quantity

8


Power over Ethernet (PoE)

Yes


Power over Ethernet (PoE) ports quantity

8



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

8



Security


DHCP features

DHCP client


IGMP snooping

Yes


Loop protection

Yes



Management features


Web-based management

Yes


MIB support

Y


Switch layer

L2/L3


Quality of Service (QoS) support

Yes


Switch type

Managed



Multicast features


Multicast support

Yes



Design


Product colour

Black


Rack mounting

No


Certification

CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI


LED indicators

Yes



Weight & dimensions


Height

27 mm


Width

158 mm


Depth

101 mm


Weight

490 g



Logistics data


Harmonized System (HS) code

85176990



Network


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x


Flow control support

Yes


Broadcast storm control

Yes


Link aggregation

Yes


VLAN support

Yes


10G support

No


Full duplex

Yes


Port mirroring

Yes


Ethernet LAN data rates

1000 Mbit/s



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

0 - 90


Storage relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-20 - 70 �C


Operating altitude

0 - 3000 m



Power


Power supply included

Yes


Input current

2.4 A


Power source

DC


DC input voltage

54 V



Packaging data


Cables included

DC


Quick start guide

Yes


Manual

Yes
