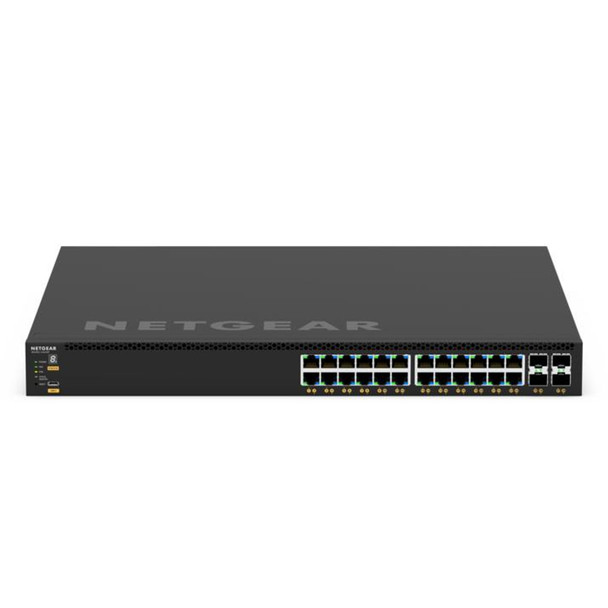

Netgear GSM4328-100AJS 24 Port L3 Managed POE Network Switch GSM4328-100NES

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP PlusTM provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY
CONFIGURATION
FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX

With built-in NETGEAR IGMP PlusTM, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Features


24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks


880W internal power supply providing 648W of PoE budget


1 slot for modular power supply (1+1 redundancy and/or EPS share)


Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used


The PoE budget can reach 720W, when the redundant PoE budget remains 648W


Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover


Layer 3 feature set includes static, policy-based, and dynamic routing


NETGEAR IGMP PlusTM, AV User Interface, and Engage Controller speed up AV installations


NETGEAR ProSAFE Limited Lifetime Hardware Warranty


Lifetime Next Business Day Hardware Replacement



Design


Stackable

Yes


Product colour

Black


Rack mounting

Yes


Form factor

1U



Weight & dimensions


Height

43.2 mm


Width

440 mm


Depth

400 mm


Weight

6.41 kg



Network


Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x


VLAN support

Yes

G support

Yes


Number of VLANs

4093



Data transmission


Packet buffer memory
MB


Throughput

95.23 Mpps


MAC address table
000 entries


Switching capacity
8 Gbit/s



Power over Ethernet (PoE)


Power over Ethernet plus (PoE+) ports quantity

24


Total Power over Ethernet (PoE) budget

648 W


Power over Ethernet (PoE)

Yes


Power over Ethernet (PoE) power per port

30 W



Operational conditions


Operating temperature (T-T)

0 - 45 -C


Storage temperature (T-T)

-20 - 70 -C



Ports & interfaces


Installed SFP+ modules quantity

4


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

24



Security


DHCP features

DHCP server, DHCP snooping, DHCPv6 snooping



Performance


Noise level

52 dB



Management features


Traffic shaping

Yes


Web-based management

Yes


Switch layer

L3


Quality of Service (QoS) support

Yes


Switch type

Managed



Power


Power supply included

Yes


Power source

AC
