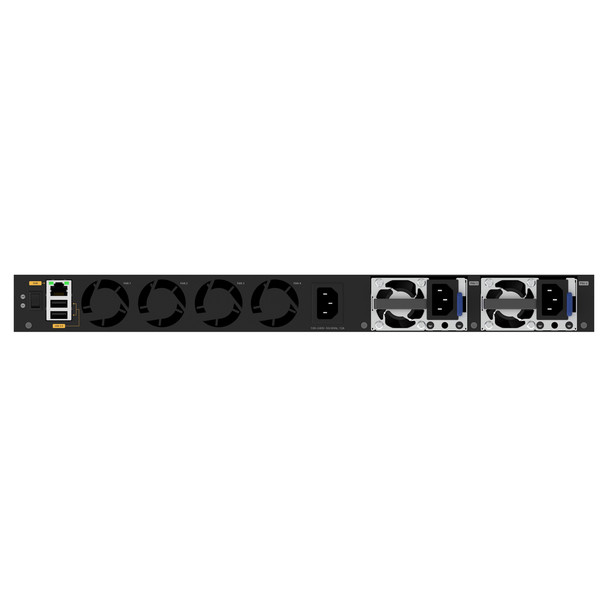

Netgear M4350-48G4XF 48 Port L3 Managed POE Network Switch GSM4352-100NES

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP PlusTM provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP PlusTM, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Features


48 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks


550W internal power supply providing 236W of PoE budget


2 slots for modular power supplies (1+1 redundancy and/or EPS share)


Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used


The PoE budget can reach 1,440W, the redundant PoE budget can also reach 1,440W


Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover


Layer 3 feature set includes static, policy-based, and dynamic routing


NETGEAR IGMP PlusTM, AV User Interface, and Engage Controller speed up AV installations



Protocols


GARP VLAN Registration Protocol (GVRP)

Yes


Routing protocols

OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2


Management protocols

SNMP V1, V2, V3



Data transmission


Packet buffer memory

32 MB


Jumbo frames
000


Latency (1 Gbps)

2.2 -s


Throughput
0.94 Mpps


MAC address table
000 entries


Store-and-forward

Yes


Jumbo frames support

Yes


Latency (10 Gbps)

0.7 -s


Switching capacity
6 Gbit/s



Other features


Power supply

550 W



Power over Ethernet (PoE)


Power over Ethernet plus (PoE+) ports quantity

48


Total Power over Ethernet (PoE) budget
40 W


Power over Ethernet (PoE)

Yes


Power over Ethernet (PoE) power per port

30 W



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

48


SFP+ module slots quantity

4


Power connector

AC-in jack


Gigabit Ethernet (copper) ports quantity

48



Security


DHCP features

DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping


Static port security

Yes


Queue scheduling algorithms

Strict Priority Queue (SPQ), Weighted random early detection (WRED)


Loop protection

Yes


Authentication type

RADIUS, TACACS+


BPDU filtering/protection

Yes


Access Control List (ACL)

Yes


MAC address filtering

Yes


DoS attack prevention

Yes


Password protection

Yes


Access Control List (ACL) ingress

511


Authentication

Guest VLAN, MAC-based authentication


IGMP snooping

Yes


IGMP proxy

Yes


Root protection

Yes


Access Control List (ACL) egress
23



Management features


Web-based management

Yes


Switch layer

L3


Quality of Service (QoS) support

Yes


ARP inspection

Yes


Switch type

Managed



Multicast features


Multicast support

Yes


Multicast Listener Discovery (MLD) snooping

Y



Design


Airflow direction

Front-to-back airflow


Stackable

Yes


Product colour

Black


Rack mounting

Yes


Form factor

1U


LED indicators

Yes



Weight & dimensions


Height

43.2 mm


Width

440 mm


Depth

400 mm


Weight

7.19 kg



Sustainability


Sustainability compliance

Yes


Sustainability certificates

BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)



Network


Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u


Virtual LAN features

MAC address-based VLAN, Private VLAN, Voice VLAN


Link aggregation

Yes


Spanning tree protocol

Yes

G support

Yes


6to4 tunnel

Yes


Number of VLANs

4093


IPv4 routes

512


Flow control support

Yes


Broadcast storm control

Yes


IPv6 routes

256


Policy-based routing

Yes


VLAN support

Yes


Full duplex

Yes


Rate limiting

Yes



Operational conditions


Operating temperature (T-T)

0 - 45 -C


Operating relative humidity (H-H)

0 - 90


Storage relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-20 - 70 -C


Non-operating altitude

0 - 3000 m


Operating altitude

0 - 3000 m



Performance


Internal memory
48 MB


Flash memory

512 MB


sFlow

Yes


Memory type

DDR4-SDRAM


Built-in processor

Yes


Processor frequency
00 MHz


Processor model

ARM Cortex-A57



Power


Power consumption (typical)

99 W


Power supply included

Yes


Power source

AC


Power consumption (max)

348 W



Packaging data


Cables included

AC, USB Type-C


Quick start guide

Yes


Rack mount kit

Yes


Included power plug types

EU, UK, NA
